Help CenterFECS41-250 Nitric Oxide (NO) Sensor
US$ 0.01 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Figaro
Place of Origin:
Japan
Model Number:
FECS41-250
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
O2-M2 Oxygen Gas Sensor (O2 Sensor)US$ 15 - 30MOQ: 1 Piece -
OPC-R1 PM2.5 Particle SensorUS$ 255 - 300MOQ: 1 Piece
-
ULPSM-SO2 968-006 Ultra-Low Power Analog Sulfur Dioxide Sensor ModuleUS$ 40 - 60MOQ: 1 Piece
-
DGS-O3 968-042 Digital Ozone (O3) Gas Sensor ModuleUS$ 60 - 80MOQ: 1 Piece
-
ZE08-CH2O Electrochemical Formaldehyde (CH2O) Detection ModuleNegotiableMOQ: 1 Piece
Brand Name
Figaro
Place of Origin
Japan
Model Number
FECS41-250
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensor

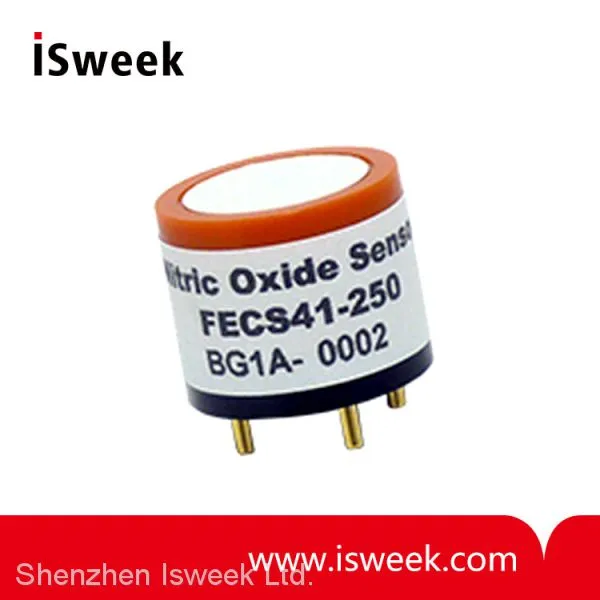

FECS41-250 for the Detection of Nitric Oxide
Figaro's Nitric Oxide Sensor FECS41-250 is a unique electrochemical-type nitric oxide sensor. Its most notable feature is its unique leak-proof structure, making it ideal for NO monitors and detectors in various fields.
FECS41-250 Nitric Oxide (NO) Sensor Features:
* High sensitivity/selectivity to NO
* Quick response to NO
* Linear output
* Long life
* Stable baseline
* Unique leak-proof structure
FECS41-250 Nitric Oxide (NO) Sensor Applications:
* Portable and fixed installation NO monitors
* NO detectors
* Ventilation control for indoor parking garages
FECS41-250 Nitric Oxide (NO) Sensor Specifications
| Detection Gas |
Nitric Oxide |
| Detection Range |
0 ~ 300 ppm |
| Maximum Overload |
1000 ppm |
| Output Signal |
400 ± 80 nA/ppm (*) |
| Repeatability |
±2% (*) |
| Resolution |
0.5 ppm (*) |
| Typical Baseline Range (Pure air) |
|
| Typical Response Time (t90) |
|
| Typical Baseline Shift (-20 ~ 40˚C) |
|
| Long Term Output Drift |
|
| Expected Life Time |
> 2 years (*) |
| Operating Temperature |
-20 ~ 50˚C |
| Operating Humidity |
15 ~ 90% RH |
| Operating Pressure Range |
1013 hPa ±10% |
| Recommended Load Resistor |
10Ω |
| Bias Voltage |
+300 mV |
| Position Sensitivity |
None |
| Recommended Storage Temp. |
0 ~ 20˚C |
| Storage Life |
Less than 6 months |
| Cap Color |
Orange |
| Weight |
4.5g (approx.) |
(*) Performance data conditions: 20˚C , 50%RH and 1013 hPa.
