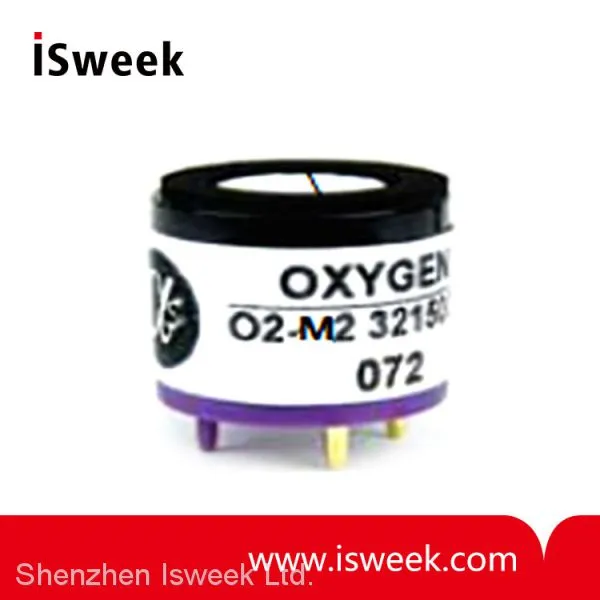

Help CenterO2-M2 Oxygen Gas Sensor (O2 Sensor)
US$ 15 - 30
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Alphasense
Place of Origin:
United Kingdom
Model Number:
O2-M2
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
OPC-R1 PM2.5 Particle SensorUS$ 255 - 300MOQ: 1 Piece -
ULPSM-SO2 968-006 Ultra-Low Power Analog Sulfur Dioxide Sensor ModuleUS$ 40 - 60MOQ: 1 Piece
-
DGS-O3 968-042 Digital Ozone (O3) Gas Sensor ModuleUS$ 60 - 80MOQ: 1 Piece
-
ZE08-CH2O Electrochemical Formaldehyde (CH2O) Detection ModuleNegotiableMOQ: 1 Piece
-
IRceL CH4 NDIR Methane (CH4) Gas SensorNegotiableMOQ: 1 Piece
Brand Name
Alphasense
Place of Origin
United Kingdom
Model Number
O2-M2
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensor
O2-M2 Oxygen Sensor Description
Alphasense Oxygen sensors use capillary flow control.
Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.
Standard galavanic sensors use lead for greatest reliability but fixed lifetime.
| O2-M2 Oxygen Sensor PERFORMANCE | ||
| Output | μA @ 20.9% O2 | 80 to 120 |
| Response time | t90 (s) from 20.9% to 0% O2 | |
| Zero current | μA in N2 | |
| Linearity | % O2 deviation @ 10% O2 | 0.6 |
| O2-M2 Oxygen Sensor LIFETIME | ||
| Output drift | % change in output @ 3 months | |
| Operating life | months until 85% original output of 20.9% O2 | > 24 |
| O2-M2 Oxygen Sensor ENVIRONMENTAL | ||
| Humidity Sensitivity | % O2 change: 0% to 95% rh @ 40℃ | |
| CO2 sensitivity | % (change O 2 reading) / % CO2 @ 5% CO2 | 0.1 |
| Pressure sensitivity | (% change of output)/(% change of pressure) @ 20kPa | |
| O2-M2 Oxygen Sensor KEY SPECIFICATIONS | ||
| Temperature range | ℃ | -30 to 55 |
| Pressure range | kPa | 80 to 120 |
| Humidity range | % rh continuous (0 to 99% rh short term) | 5 to 95 |
| Storage period | months @ 3 to 20℃ (store in sealed pot, open circuit) | 6 |
| Load resistor | Ω (recommended) | 47 to 100 |
| Diameter | mm (including label) | 20 |
| Height | mm (including foam ring) | 17.4 |
| Weight | g | |
