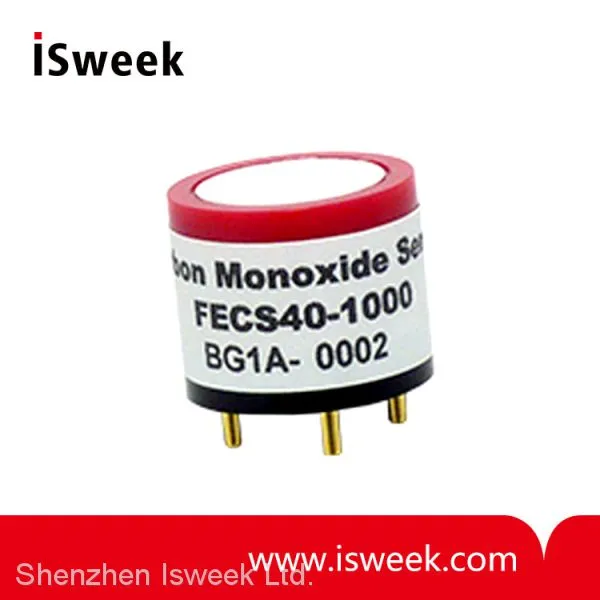

FECS40-1000 for the Detection of Carbon Monoxide
Figaro’s Carbon Monoxide Sensor FECS40-1000 is a unique electrochemical-type carbon monoxide sensor. Its most notable feature is its unique leak-proof structure, making it ideal for CO monitors and detectors in various fields.
FECS40-1000 Carbon Monoxide (CO) Sensor Features:
* High sensitivity/selectivity to CO
* Quick response to CO
* Linear output
* Long life
* Stable baseline
* Unique leak-proof structure
FECS40-1000 Carbon Monoxide (CO) Sensor Applications:
* Portable and fixed installation CO monitors
* CO detectors
* Ventilation control for indoor parking garages
FECS40-1000 Carbon Monoxide (CO) Sensor Specifications:
Detection Gas | Carbon Monoxide |
Detection Range | 0 ~ 1000 ppm |
Maximum Overload | 1500 ppm |
Output Signal | 70±15 nA/ppm (*) |
Repeatability | ±2% (*) |
Resolution | 1 ppm (*) |
Typical Baseline Range (Pure air) | -2 ppm to +3 ppm (*) |
Typical Response Time (t 90 ) | <30 sec (*) |
Baseline Shift (-20 ~ 50˚C) | <10 ppm (*) |
Long Term Output Drift | <5% /year (*) |
Expected Life Time | 3 years (*) |
Operating Temperature | -20 ~ 50˚C |
Operating Humidity | 15 ~ 90% RH |
Operating Pressure Range | 1013 hPa±10% |
Recommended Load Resistor | 10Ω |
Bias Voltage | Not required |
Position Sensitivity | None |
Recommended Storage Temp. | 0 ~ 20˚C |
Storage Life | 6 months |
Cap Color | Red |
Weight | 4.5g (approx.) |
(*) Performance data conditions: 20 ˚C , 50%RH and 1013 hPa.
