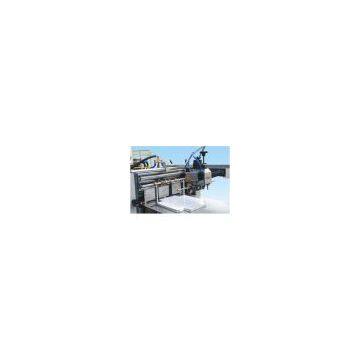

HM-ZD600 Automatic rigid box making machine
This machine available in all kinds of rigid set up box ( bottom and top boxes ) like shoe boxes, cell phone boxes, shirt boxes, garment boxes, gift boxes, jewelry boxes, chocolate boxes, hardware boxes, high grade food boxes, electronic boxes, packaging boxes ect.
Contact : yvette@dghongming.com Mobile: 008613829101603
Features and function:
1. Suitable for all kinds of rigid boxes automatic production
2. Computer control with auto error display and malfunction display.
3. Automatic feeding cover paper and cardboard.
4.24 hours control glue pre-heating
5.Hot-melting adhesive automatic conveying, cutting and finish pasting the inner box quad stayer(four angles) of cardboard in one process.
6. The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.
7. The box-forming unit can automatically collect boxes and deliver them to the forming unit. The box-forming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.
8. The glued paper and cardboard inner box employ hydraulic pneumatic rectifying device to spot correctly. The spotting error is 0.2mm.
9. The whole machine employs PLC, photoelectric detector system and touch screen man-machine interface to automatically form boxes in one process.
10. It can automatically diagnose the troubles and alarm accordingly.
11. Remodel for automatic production of different kinds of boxes (optional)
12. Automatic control system for glue viscosity (optional)
------------------------------------------------------------------------
Automatic rigid box making machine HM-ZD600
------------------------------------------------------------------------
Paper Sheet Size B=Length, A=Width
A ( max.) 610mm A ( min.) 95mm
B( max.) 850mm B ( min.) 180mm
-------------------------------------------------------------------------
Finish product (Box )Size (L=Length, W=Width ,H=Height , T=Thickness)
L ( max.) 600mm L ( min.) 125mm
W ( max.) 400mm W ( min.) 50mm
H ( max.) 130mm H ( min.) 12mm
-----------------------------------------------------------------------------
Cardboard thickness (T)
T ( max.) 3mm T ( min.) 1.0mm
-----------------------------------------------------------------------------
Thickness of Paper(m2/g) 80g-160g/m2
-----------------------------------------------------------------------------
Folding Edge size ( R ) 10mm-20mm
-----------------------------------------------------------------------------
Speed 20-35pcs/min
-----------------------------------------------------------------------------
Power 17KW
------------------------------------------------------------------------------
Net Weight 5800kg
------------------------------------------------------------------------------
Machine Dimension 6800x4500x3300mm
-------------------------------------------------------------------------------
Note:
1. The max. size and the min. size of box are determined by the max. and min. size of cover paper. A( Min.)≤W+2H+2T+2R≤A(Max.) B( Min.)≤L+2H+2T+2R≤B(Max.)
2. The production speed of the rigid box maker is determined by the box size, paper and cardboard materials.
3. Customizable folded edge is 45mm
4. We don’t provide air compressor. (8 atm=0.808MPA , 7.5KW compressor is needed)
