Help CenterAutomatic Rigid Box Maker Rigid Box Machine
Related Products

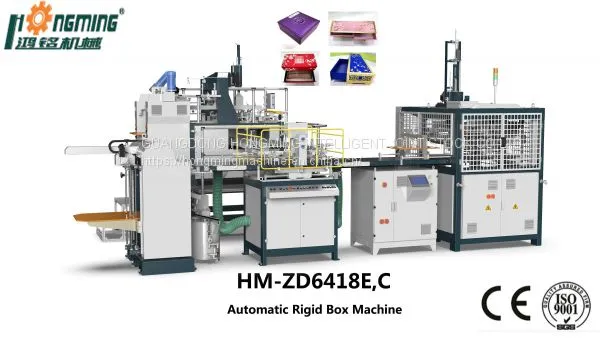

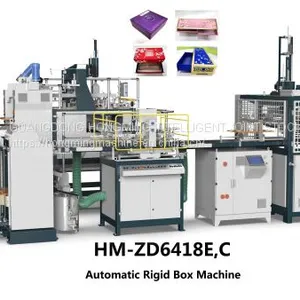

HM-ZD6418E Hongming Automatic Rigid Box Making Machine
It is a fully automatic and intelligent machine mainly used to manufacture rigid boxes which is consisted of a cover paper and an inner box, such as gift boxes, phone boxes, big boxes, jewelry boxes, puzzle boxes, chocolate boxes, shoe boxes, wallet boxes, small boxes, cosmetic boxes, watch boxes, chopstick boxes, even T-shape boxes and drawer boxes, etc.
HM-ZD6418E Hongming Automatic Rigid Box Making Machine is suitable to make various big size premium boxes'mass production, such as shoe boxes, mobile phone boxes, jewelry boxes, wine boxes, slanting boxes (option), slip case boxes (option), and clamshell boxes (option), etc. The wrapped box's max height is 190mm (C) and 130mm (E), with max folding-in depth being 100mm.
HM-ZD6418E / HM-ZD6418C adopts PLC and man-machine control, electric eye tracing system, hydraulic rectifying system, and can automatically feed cover paper, feed greyboard, paste four corners, spot greyboard, lift box, fold corner edges and wrap box.
The feeder, the gluer and the conveyor are driven by servo which has continuously variable transmission and enjoys high accuracy, easy adjusting, and high efficiency. Double color conveyor can avoid changing to other color belt, which is Hongming's patent. The spotting unit adopts Switzerland micro throttle valve, high accuracy lead-screw (c) or square tooth lead-screw (E) for rectifying, enhancing the spotting accuracy to±0.02mm. The forming unit employs THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement.
HM-ZD6418E Hongming Automatic Rigid Box Making Machine
1. Suit to all kinds of rigid boxes in mass production;
2. Parameter adopts computer digital setting;
3. Auto error stop and display;
4. Automatic feed paper and greyboard;
5. 24-hours control for glue pre-heating;
6. Wrapper can input 300 product formulas;
7. Corner pasting part with independent man-machine control and
heating system
8. Adopt YASKAWA servo control system;
9. Spotter by electric eye tracing system and hydraulic pneumatic
rectifying system to spot correctly (spotting accuracy ±0.2mm);
10. Wrapper can automatic lift and wrap box;
11. Automatic control system for glue viscosity (optional).
Technical Parameters:
1,The Finished Box Max. sizes are determined by paper
size.A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.) 2,Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
3,The production speed of the rigid box machine is determined by the box size,
the paper and the greyboard materials.
4Seller doesn't provide air compressor.(8atm=0.808MPa, 7.5kW compressor is needed)
5,Item 5, item 6, item 7and item 8 are optional devices for HM-ZD6418E and HM-6418C.
Finished products:
About USGuangdong Hongming Intelligent Joint Stock Co.,Ltd.(formerly Dongguan Hongming Machinery Co.,Ltd). It is a professional enterprise that provides premium box packaging automatic equipment and automatic complete line solutions. The company was established in 1999, Located in Dongcheng District, Dongguan City, Guangdong Province,covering an area of more than 80000 square meters. The wholly-owned subsidiary "Jiangsu Hongxi Technology Co.,Ltd."is located in Fu'an Town, Yancheng City, Jiangsu Province.New headquarters has been being under construction located in Dongguan City.
Hongming sales network covers many regions of the world. It has a comprehensive sales network throughout China and overseas, providing advanced equipment, technology, services and comprehensive packaging solutions to nearly 10000 users in more than 30 countries and regions around the world. It is the preferred supplier of well-known premium box manufacturers.Hongming focuses on R&D and produces a wide range of automatic and semi-automatic rigid machines as well as other ancillary equipment required for post-press packaging. It is widely used in the production of all kinds of premium boxes, such as mobile phone boxes, jewelry boxes, cosmetic boxes, shoe boxes, clothing boxes, food boxes, wine boxes and other premium boxes.
Contact US:
FAQ
Q: How could I pay?
A1: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q2: What is your packing way?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3: What is the delivery lead time?
A3: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q4: Where is your main market?
A4: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional after-sale service
