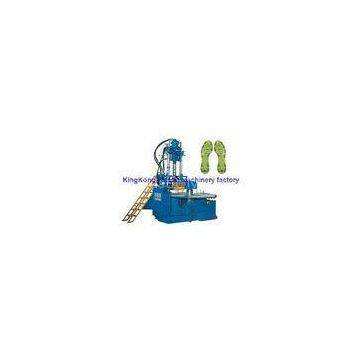

Single Color Vertical Sole Molding Machine 8 Stations For PVC / TPR Outsole
- T/T L/C D/P D/A
- 7 days
You May Like
-
3 Colors PVC Jelly Sandal Footwear Making Machine / Injection Molding Machine
-
Colorful PVC Sandal Shoe Rotary Injection Molding Machine For Making Shoes
-
Automatic Electrostatic Flocking Equipment For Colorful PVC Lady Sandals
-
Christmas Tree Flocking Machine , Electrostatic Flocking Machine For Jewelry Box
-
Shoe Injection Molding Machine Accessories Jewelry Box Eletrostatic Flocking Machine
-
Shoe Electrostatic Flocking Machine Production Line For Plastic Dressed Hanger
Product Details
| Brand Name | KingKong(JINGANG) | Place of Origin | China | |
| Model Number | JG-106 |
Product Description
Certification:CE
Single color Vertical TPU outsole molding machine , Mono color TPU sole molding machine
This is a Vertical 8 Stations Single color PVC / TPR outsole molding machine, with or without mold water cooling system for your option for better product cooling. With high clamping force so that to ensure less product burr, in this case the finished footwear produce no need to trim it.
Machine working video link:
http://youtu.be/8HzjPAE8gOo
Machine specification:
| Raw material | PVC/TPR/TR/TPU |
| Finished Product | Sole, heel |
| Mold station | 8 PCS |
| Production capacity | 200-250 Pairs/hr |
| With Mold water cooling system | Yes |
| Mold clamping force | 120 tons |
| Injection pressure | 35 tons |
| Screw Diameter | 55/60mm |
| Max dimension mold | 500x450x150mm (LxWxH) |
| Max injection volume | 450 grams |
| Motor Power | 15.3kw |
| Total net Weight | 6.5 Tons |
| Machine dimension | 2 x 2 x3.2 M |
Within 20 days after confirm deposit;
Delivery term:As per request: Exwork, FOB, CIF for your option;
Payment term:T/T 30% in advance, balance before shipment;
(We will send the ready machine photo and also testing video for your information)
Engineer Oversea installation and aftersales service avaiable for you! What we can supply for the same:All kinds of PVC,TPR,TR,TPU,EVA Mold for shoe injection machine, and all necessary machinery to set up the shoe line, like Plastic Mixer, crusher, drying hopper, Water cooling tower, sole drilling machine, flip flop attaching machine,etc....
Output Finished Sample:Contact Us
- Dongguan Kingkong Plastic Machinery Factory
- Contact nameMr. Joined Chat Now
- Phone86-159-13797096
- AddressNo. 6 team,Village Forestry Ting Road, Hou Jie Town, Tongchuan, Shaanxi
