MEGATRO 110KV 1C3 ZM2 cat head suspension transmission tower

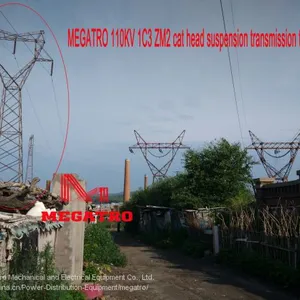

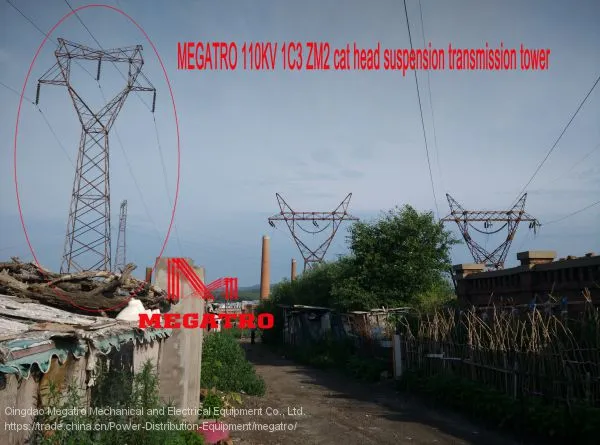

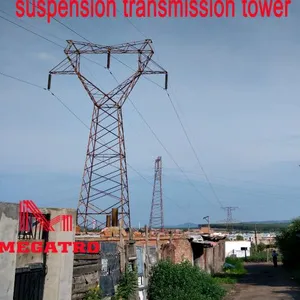

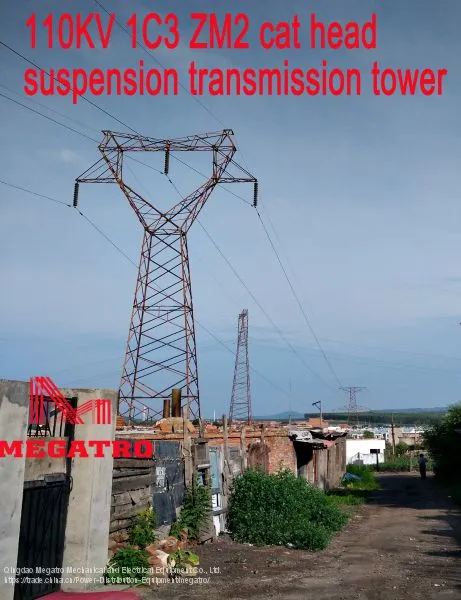

This photo refers to our 110KV 1C3 ZM2 cat head suspension transmission tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item |
Temperature (℃) |
Wind speed (m/s) |
Ice thickness (mm) |
Max. temperature |
40 |
0 |
0 |
Mini. temperature |
-30 |
0 |
0 |
Ice thickness |
-5 |
10 |
10 |
Basic wind speed |
-5 |
27 |
0 |
Installation condition |
-15 |
10 |
0 |
Annual temperature |
5 |
0 |
0 |
Lightning overvoltage |
15 |
10 |
0 |
Operation overvoltage |
5 |
15 |
0 |
Hot-line work |
15 |
10 |
0 |
2 tower design data
|
Tower type |
Nominal Height scope (mm) |
Nominal Height (mm)
|
Horizontal span (m) |
Vertical Span (m)
|
Angle º |
Insulator Type
|
Horizontal Span at angel condition |
1C3 ZM2 |
15～30 |
27 |
400 |
600 |
I type insulator |
/ |
|
30 |
380 |
600 |
/ |
||||
Conductor type: 2×LGL -300/40 |
OPGW: JLB-100 |
||||||
Tower estimated weight and foundation force
|
Tower Type |
Tower weight scope (kg) |
Foundation force scope (KN) |
|||||
Tmax |
Tx |
Ty |
Nmax |
Nx |
NY |
||
1C3 ZM2 |
4013～6551 |
127～173 |
16～20 |
14～17 |
194～273 |
24～30 |
17～26 |
