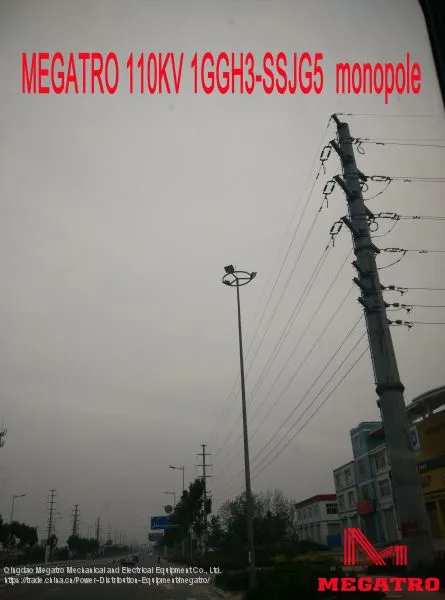

MEGATRO 110KV 1GGH3-SSJG5 monopole

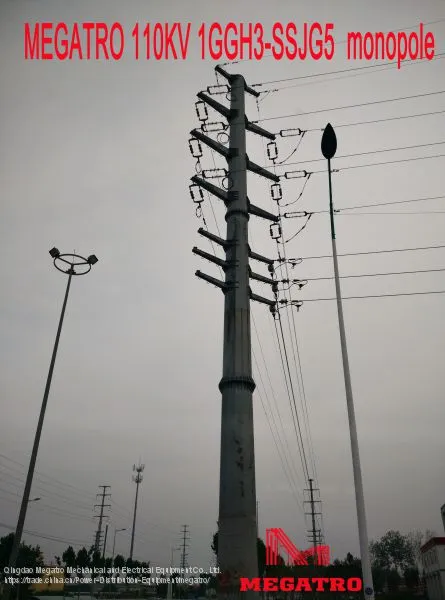

This photo refers to our 110KV 1GGH3-SSJG5 monopole, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item |
Temperature (℃) |
Wind speed (m/s) |
Ice thickness (mm) |
Max. temperature |
40 |
0 |
0 |
Mini. temperature |
-20 |
0 |
0 |
Ice thickness |
-5 |
10 |
10 |
Basic wind speed |
-5 |
27 |
0 |
Installation condition |
-10 |
10 |
0 |
Annual temperature |
15 |
0 |
0 |
Lightning overvoltage |
15 |
10 |
0 |
Operation overvoltage |
15 |
15 |
0 |
Hot-line work |
15 |
10 |
0 |
2 tower design data
|
Tower type |
Nominal Height scope (mm) |
Nominal Height (mm)
|
Horizontal span (m) |
Vertical Span (m)
|
Angle º |
Insulator Type
|
Horizontal Span at angel condition |
1A6 ZMK |
21～27 |
27 |
150 |
200 |
50～70 |
/ |
/ |
Conductor type: 2×LGL -300/40 |
OPGW: JLB-100 |
||||||
Tower estimated weight and foundation force
|
Tower Type |
Tower weight scope (kg) |
Foundation force scope (KN) |
|||||
Tmax |
Tx |
Ty |
Nmax |
Nx |
NY |
||
1A6 ZMK |
9819～15763 |
265～337 |
21～34 |
21～34 |
305～407 |
24～40 |
24～40 |
