Product Description

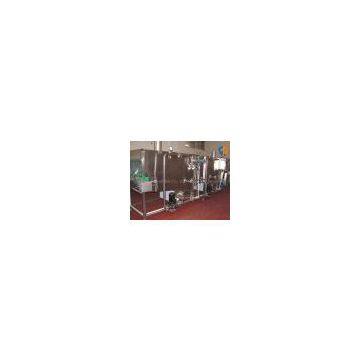

Bactericidal spray machine (sterilization machine)
1. Principal features
This machine has 5 temperature sections , temperature difference between section is small . It could assure good sterilizing effects, reduce bottle broken rate . Hot water is recycled to use in temperature sections in order to save heat energy and reduce water consumption .This machine could process bottled beverage or beer products , which completely conforms to relevant technologic requirements .
2. Principal parameter
|
Model |
PLJ-3000 |
PLJ-6000 |
PLJ-10000 |
|
Production capacity |
2000-3000(b/h) |
4000-6000(b/h) |
8000-10000(b/h) |
|
Bottle inlet temp |
5-10°C |
||
|
Bottle outlet temp |
<45°C |
||
|
Sterilizing stemp |
62-63°C |
||
|
Sterilizing unit |
15-20PU |
||
|
Steam pressure |
0.5-0.6Mpa |
||
|
Width of belt(m) |
1.22 |
1.5 |
1.5 |
|
Circling water(m3/h) |
10 |
20 |
40 |
|
Water consumption |
1(m3/h) |
1.5(m3/h) |
2(m3/h) |
|
Steam consumption |
200kg |
350kg |
600kg |
|
Outer size(mm) |
8000*1500*1850 |
1100*1800*1850 |
15600*1800*1850 |
|
Weight (kg) |
4800 |
7200 |
9600 |
