Certification:CE

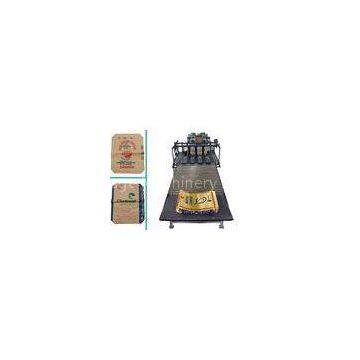

CE Certificate High-speed Automatic Paper Bag Making Machine with Glued Bottom
Features of our full-automatic paper bag production line Flat & glued bottom with filling valve; Different types for cement, chemicals, foods, tea, etc. 2-color automatic printing 2~4 paper layers, with one extra PE/PP film available 35~50 million bags/year Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system Full technical service for installation, training and maintenance Full solution for factory construction and materials purchase. Technical parameters of ZT9802:|
Item No. |
Name |
Unit |
Specification Value |
|
|
1 |
Bag Spew. |
Length of bag tube |
㎜ |
Cutoff length + 40 |
|
Cutoff length |
㎜ |
700 -1050(±4)29 Grades,Each grade 12.5 |
||
|
Width of bag tube |
㎜ |
400 – 600(no grade) adjustment |
||
|
2 |
Printing spew. |
Printing length |
㎜ |
600 – 950 |
|
Printing width |
㎜ |
1100 |
||
|
Printing ink |
Ink |
|||
|
Color category |
two-color overprint, four-color overprint |
|||
|
Formed thickness |
㎜ |
6 |
||
|
3 |
Paper layer |
layer |
3 – 4 |
|
|
4 |
Production efficiency |
bag / min |
100 – 150 |
|
|
Name of Glue |
Metamorphic Starch, Methyl or CMC |
|||
|
5 |
Scroll spew. |
Width of Scroll |
㎜ |
1220 |
|
Scroll diameter |
㎜ |
1220 |
||
|
Diameter of scroll core |
㎜ |
75 – 80 |
||
|
6 |
Main motor |
Main Motor |
Y180L – 4 TYPE, 22KW 1 unit |
|
|
Main motor, delta belt |
C-type, length: 2500mm quantity: 6 |
|||
|
7 |
Total power |
KW |
30.9 |
|
|
Weight |
T |
34 |
||
|
Outline dimensions (Length x Width x Height) |
M |
34 x 2.4 x 2.7 |
HD4916BD Bottomer Machine
(bottomer with strength sheet pasting unit)
Operating condition
|
Working hour |
22 hours/day |
|
Design temperature |
0~40℃ |
|
Design humidity |
MAX. 95% |
|
Number required |
1 unit |
|
Model name |
HD4916BD |
Performance
|
HD4916BD |
|
|
Speed |
MAX 80 bags/min |
|
Tube Width |
380～620 mm |
|
Bottom Width |
80～160 mm |
|
Valve Sheet Length *Width |
(100-300)﹡(120-340)adjustable |
|
Bag Length |
390～1020 mm |
|
Bottom Cen |
