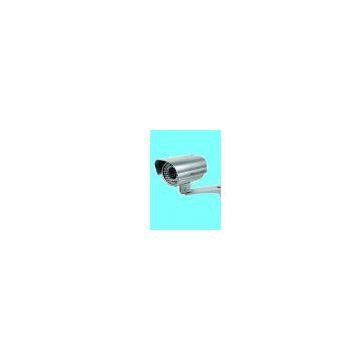

Help CenterIR Security Camera CW60A
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
IQview
Place of Origin:
China
Model Number:
CW60A
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
IQview
Place of Origin
China
Model Number
CW60A
CW60A Series
IR Weatherproof Camera
SONY/SHARP Color CCD optional 420TVL-700TVL optional
IR LED:Ā8X35PCS
IR Distance:50M
12mm CS Lens
Including Bracket
IR Weatherproof Camera
SONY/SHARP Color CCD optional 420TVL-700TVL optional
IR LED:Ā8X35PCS
IR Distance:50M
12mm CS Lens
Including Bracket
| Model | 4400 | 3420 | 3470 | 3540 | 3550 |
| Image Sensor | 1/4"SHARP CCD | 1/3"SONY CCD | |||
| TV System | PAL/NTSC | ||||
| Image Resolution | PAL:500(H)×582(V) | PAL:500(H)×582(V), | PAL:500(H)×582(V), | PAL:752(H)×582(V), | PAL:752(H)×582(V), |
| NTSC:510(H)×494(V) | NTSC:510(H)×494(V) | NTSC:510(H)×494(V) | NTSC:768(H)×494(V) | NTSC:768(H)×494(V) | |
| Horizontal Resolution | 420TV lines | 420TV lines | 470TV lines | 540TV lines | 550TV lines |
| Minimum Illumination | 0Lux(IR on) | ||||
| S/N Ratio | >48dB | ||||
| AES | 1/50-1/60,000Sec(PAL),1/60-1/60,000Sec(NTSC) | ||||
| White Balance | ATW | ||||
| AGC | Auto | ||||
| BLC | ON | ||||
| Gamma | 0.45 | ||||
| Sync System | Internal Synchronization | ||||
| Lens | 8mm board lens | ||||
| IR Leds | 60pcs | ||||
| IR Nnight vision | 40m | ||||
| Video Output | 1.0Vp-p,75ohm | ||||
| Voltage | DC12V±1 V | ||||
| Power Consumption | mA(IR on) | ||||
| Operating Environment | -10℃~+50℃,RH90% MAX | ||||
| Demension | 175(W) x124(H) x83(D)mm | ||||
| Weight | 0.9Kg | ||||
