Certification:ISO/TS 16949: 2009

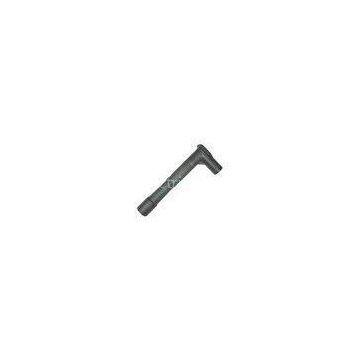

Stable and Durable PPS Spark Plug Resistor with no Resistance but Galvanical
Strength of product:
Short-term heat resistance and long-term thermal stability are both better than any other current engineering plastics. Great dimension stability under the condition of high temperature and high humidity High mechanical strength but low abrasion No deformation, heat resistance, acid and alkali resistance, no dilatation Useful time is not less than 50,000 km or 3 years Can be designed and developed according to customer’s requirementsProduct basic characteristics:
|
Resistance |
0 |
|
Color |
Black |
|
Withstand voltage |
≥30KV |
|
Usage temperature |
-20-155℃ |
|
Insertion and Removal forces |
20N-70N |
|
Material |
PPS(Black) |
|
Assembly way |
Injection molding |
|
Assembly dimension: connecting ignition wire |
|
|
Assembly dimension: connecting Spark Plug |
Material properties of product:
|
Melting point |
≥280℃ |
|
Heat distortion temperature |
≥260℃ |
|
Luo\'s hardness |
＞100HR |
|
Tensile strength |
＞170Mpa |
|
Bending strength |
＞220Mpa |
|
Notched impact strength |
＞16Mpa |
|
Bending modulus |
＞3.5x104 |
|
Molding shrinkage rate |
＜0.0025% |
|
Absorptivity |
＜0.05% |
|
Surface resistivity |
≥1.0 X 1015Ω |
|
Volume resistivity |
≥1.0 X 1016Ω.m |
|
Electrical strength |
＞18KV/m |
|
Friction coefficient |
0.01-0.02 |
Applications:
Used in the ignition system of auto engine
