LED Panel Light 115LM/W 41W 60*60*11CM

LED Panel Light 115LM/W 41W 60*60*11CM thumbnail-1
LED Panel Light 115LM/W 41W 60*60*11CM thumbnail-2
LED Panel Light 115LM/W 41W 60*60*11CM thumbnail-3
LED Panel Light 115LM/W 41W 60*60*11CM photo-1

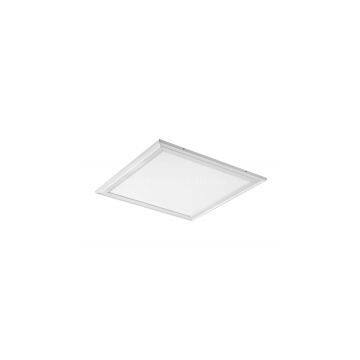

LED Panel Light 115LM/W 41W 60*60*11CM photo-2

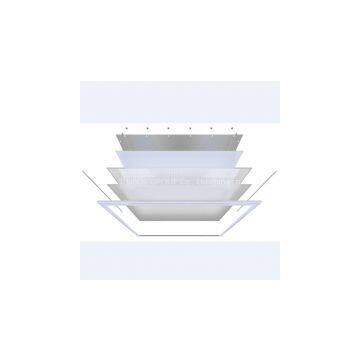

LED Panel Light 115LM/W 41W 60*60*11CM photo-3
Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ILUBOX
Place of Origin:
China
Model Number:
ILU-PL-W-6060-41
Contact Supplier Request Quote Chat Now
ILUBOX GROUP Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ILUBOX
Place of Origin China
Model Number ILU-PL-W-6060-41

Description:

·        Unique design of Light Guide Panel- gives good performance of lighting

·        High-quality of branded chip -provide excellent lumens

·        Detail assurance - bring reliabletrust to our clients worldwide

Key words: 6060 LED panel light, LED panel lighting, LED panel, LED ceiling panellight

Brand: ILUBOX



Installation: Recessed, Suspended,Mounted,

Lighting: Side lighting

Application: Meeting Room, Hotel, Office,House, School, Institution, Factory, Warehouse, Hospital etc..



Net/Gross Weight: 3.05kg/3.55kg (PC)

Gross Weight: 15.25kg/CTN

Packing Information: 4pcs/CTN,CTN:640*165*680mm

Characteristics: High lumen

Advantages: ILUBOX wanna supply not only goodproducts, but also incredible experience.



Specification:

Model No.: ILU-PL-W-6060-41

Series: 115LM/W

Power: 41W±2W

Power supply: 180~260Vac50/60Hz

Driver Output Data: 25-38Vdc / 1150ma / 37W

Power Factor/THD/PE: >90%/<20/88%

Driver: Removable Driver / PIP

Over Load/Short Circuit: Protection

Surge/Protection Class IEC: >1KV/ClassII

Hi-pot Test Range: SELV Isolated Driver,3750Vdc/5mA/60S

Total delivered lumens: 4715LM

Colour temperature:  NW 3000K NW 4000K CW 5500K/6000K

CRI / SDCW: >80 / <6

Dimension(MM): 595*595*11mm

Type of LED: 26x46milChip/192pcs

Light Guide Panel brand: Mistubishi

Material: Aluminum

Beam Angle: 120°

LumenMaintenance70%: 100,000hrs

LM80: >97.1% lumen maintance @ 6,000hrs

Dimmable: 0~10V(UL)/Dali/PWM/Traic Optional

Frame Color RAL: Pure white/RAL9016

Power supply unit: external driver

IP/IK/Glow-wire: IP20/IK06/650℃

Temp./Humidity: Working:-20℃~40℃ Storage: <60℃/<75%

Warranty: 6years
