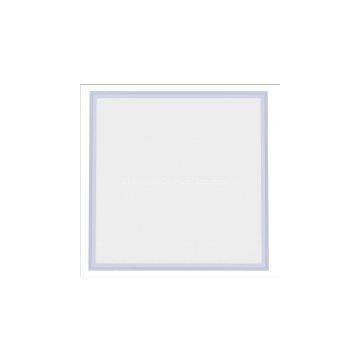

UL LED Panel Light 110LM/W 38W 2x2

Description:

·        Unique design of Light Guide Panel- gives good performance of lighting

·        High-quality of branded chip -provide excellent lumens

·        Detail assurance - bring reliabletrust to our clients worldwide

Key words: UL LED panel light, DLC LED panel lighting, 2x2 LED panel, LED ceilingpanel light

Brand: ILUBOX

Installation: Recessed, Suspended,Mounted,

Lighting: Side lighting

Application: Meeting Room, Hotel, Office,House, School, Institution, Factory, Warehouse, Hospital etc..

Net/Gross Weight: 4.2kg/5.5kg (PC)

Gross Weight: 8.45kg/CTN

Packing Information: 2pcs/CTN,CTN:630*635*90mm

Panel: L=604mm W=604mm H=60mm DriverBox=50x100x320mm

Panel: L=23.8" W=23.8" H=2.36"Driver Box=1.96"x3.94"x12.6"

Characteristics: High lumen

Advantages: ILUBOX wanna supply not only goodproducts, but also incredible experience.

Specification:

Model No.: ILU-110-UL22-38

UL Model Number: ET-22-40W

Power: 38W±2W

Power supply: 100~277Vac 50/60Hz

Driver Output Data: 25-38Vdc /950ma / 38W

Power Factor/THD/PE: >90%/<20/88%

Driver: Fixed Driver

Over Load/Short Circuit: Protection

Surge/Protection Class IEC: >1KV/ClassII

Hi-pot Test Range: SELV Isolated Driver,3750Vdc/5mA/60S

Total delivered lumens: 4180LM

Colour temperature:  NW 3000K NW 4000K CW 5500K/6000K

CRI / SDCW: >80 / <6

Dimension(MM): 604*604*11mm

Type of LED: 26x46mil Chip/108pcs

Light Guide Panel brand: Japan Mitsubishi

Material: Aluminum

Beam Angle: 120°

Lumen Maintenance 70%: 100,000hrs

LM80: >97.1% lumen maintance @ 6,000hrs

Dimmable: 0~10V(UL)/Dali/PWM/Traic Optional

Frame Color RAL: Pure white/RAL9016

Power supply unit: external driver

IP/IK/Glow-wire: IP20/IK06/650℃

Temp./Humidity: Working:-20℃~40℃ Storage: <60℃/<75%

Warranty: 6years
