UL LED Panel Light 105LM/W 50W 2x2

UL LED Panel Light 105LM/W 50W 2x2 thumbnail-1
UL LED Panel Light 105LM/W 50W 2x2 thumbnail-2
UL LED Panel Light 105LM/W 50W 2x2 thumbnail-3
UL LED Panel Light 105LM/W 50W 2x2 photo-1
UL LED Panel Light 105LM/W 50W 2x2 photo-2
UL LED Panel Light 105LM/W 50W 2x2 photo-3
Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ILUBOX
Place of Origin:
China
Model Number:
ILU-105-UL22-50
Contact Supplier Request Quote Chat Now
ILUBOX GROUP Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ILUBOX
Place of Origin China
Model Number ILU-105-UL22-50

Description:

·        Unique design of Light Guide Panel- gives good performance of lighting

·        High-quality of branded chip -provide excellent lumens

·        Detail assurance - bring reliabletrust to our clients worldwide

Key words: UL LED panel light, DLC LED panel lighting, 2x2 LED panel, LED ceilingpanel light

Brand: ILUBOX



Installation: Recessed, Suspended,Mounted,

Lighting: Side lighting

Application: Meeting Room, Hotel, Office,House, School, Institution, Factory, Warehouse, Hospital etc..

Net/Gross Weight: 4.2kg/5.5kg (PC)

Gross Weight: 8.45kg/CTN

Packing Information: 2pcs/CTN,CTN:630*635*90mm

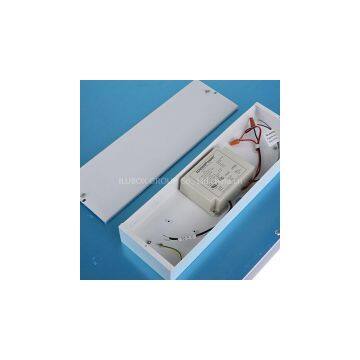

Panel: L=604mm W=604mm H=60mm DriverBox=50x100x320mm

Panel: L=23.8" W=23.8"H=2.36" Driver Box=1.96"x3.94"x12.6"

Characteristics: High lumen

Advantages: ILUBOX wanna supply not only goodproducts, but also incredible experience.



Specification:

Model No.: ILU-105-UL22-50

UL Model Number: ET-22-52W

Power: 50W±2W

Power supply: 100~277Vac 50/60Hz

Driver Output Data: 25-38Vdc/1400ma/45W

Power Factor/THD/PE: >90%/<20/88%

Driver: Fixed Driver

Over Load/Short Circuit: Protection

Surge/Protection Class IEC: >1KV/ClassII

Hi-pot Test Range: SELV Isolated Driver, 3750Vdc/5mA/60S

Total delivered lumens: 5250LM

Colour temperature:  NW 3000K NW 4000K CW 5500K/6000K

CRI / SDCW: >80 / <6

Dimension(MM): 604*604*11mm

Type of LED: 26x46mil Chip/192pcs

Light Guide Panel brand: Japan Mitsubishi

Material: Aluminum

Beam Angle: 120°

LumenMaintenance70%: 100,000hrs

LM80: >97.1% lumen maintance @ 6,000hrs

Dimmable: 0~10V(UL)/Dali/PWM/Traic Optional

Frame Color RAL: Pure white/RAL9016

Power supply unit: external driver

IP/IK/Glow-wire: IP20/IK06/650℃

Temp./Humidity: Working:-20℃~40℃ Storage: <60℃/<75%

Warranty: 6 years
