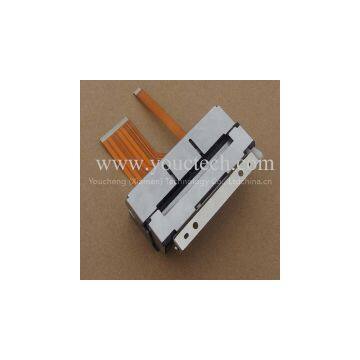

Autocutter Thermal Printer Head Seiko CAPD245 Equivalent

thermal printer head Seiko CAPD245 equivalent

Features:

Easy paper loading mechanism, high printing speed 100mm/s max, Low voltage supply 3.5V~8.5V, With auto cutter (full/partial cut), High printing resolution 8dot/mm, Reliable lifetime 50km, Low printing noise 60db.

Specifications:

Printing method: Thermal line dot printing
Number of dots/line: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58±1
Printing speed (mm/s): 100
W*D*H (mm): 83.1* 35.4* 26.9 (excluding FPC)
Weight (g): Approx. 120
Cutting method: Autocutter in Full cut/partial cut (leave center point)
Head temperature detection: By thermistor
Out of paper detection: By photo interrupter
Platen position detection: By mechanical switch
Cutter home position detection: By photo interrupter
Power supply: Print head 3.13~ 8.5; Dynamo 3.5~ 8.5; Logic voltage 2.7V ~ 5.25V; Autocutter 3.5V ~ 8.5V
Pulse activation: ≥100 million (Printing rate=12.5﹪)
Abrasion resistance 50km
Cutter life: 500,000 cuts
Paper path: Curved
Operating temperature (deg): 0~50
Operating humidity (RH): 20% ~ 85%
Storage temperature (deg):  -20 ~ 60
Storage humidity (RH): 5% ~ 95%
Compatible brand: Seiko CAPD245
