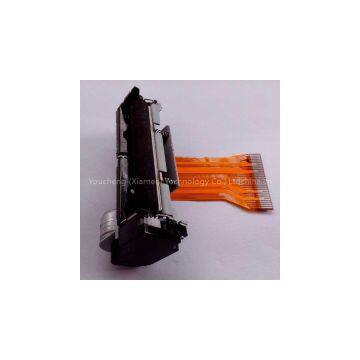

Seiko LTPZ245D-C384-E, LTPZ245N-C384-E Epson M-T173V Thermal Printer Head

48mm print width 58mm paper width thermal printer mechanism;
Compatible with Seiko LTPZ245D-C384-E, LTPZ245N-C384-E and Epson M-T173V printer head;
4.2V~8.5V working power;
Vertical paper path;
High print speed 90mm/s;
Dimension 70.1(L)*21.8(W)*31(H)mm;
Control board with RS232, TTL is available;

Application for pos terminals.

Printing method: Thermal line dot printing

Number of dots/line: 384

Resolution (dots/mm): 8

Printing width (mm): 48

Paper width (mm): 58

Printing speed (mm/s): 90 (@8.5V)

W*D*H (mm): 70.1 * 30 * 21.8

Weight (g): Approx. 45

Head temperature detection: By thermistor

Out of paper detection: By photo interrupter

Power supply: Printer head 4.2V ~ 8.5V; Dynamo 4.2V ~ 8.5V; Logic voltage 2.7V ~ 5.25V

Pulse activation: ≥100 million (Printing rate=12.5%)

Abrasion resistance 50km

Paper path: straight

Operating temperature (deg): 0~50

Operating humidity (RH): 10% ~ 80%

Storage temperature (deg): -25 ~ 70

Storage humidity (RH): 5% ~ 90%
