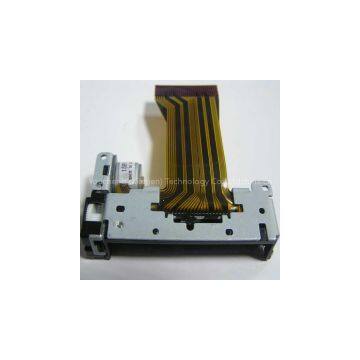

Seiko LTPZ245M-C384-E Epson M-T173H Thermal Printer Mechanism Copy

58mm compact thermal printer mechanism,

compatible seiko ltpz245m-c384-e and epson m-t173h printer head.

1. Printing method: Thermal dot line printing
2. Paper width: 58 mm
3. Printing width: 48 mm
4. Resolution: 8 dots/mm
5. Driver: stepping motor (4.2~8.5VDC 2phase bipolar),0.063mm per step
6. Number of dots/line:384
7. Dot pitch: 0.125 mm
8. Dot size: 0.125mm0.12mm
9. High printing speed
10. Printing Life: 50Km
11. Thermal head temperature detection: Via Thermistor
12. Paper detection: Via photo interrupter
13. Head working voltage: 3.0~8.5VDC
14. Logic voltage: 3.0~7.0VDC
15. Motor voltage: 3.0~8.5VDC
16. Operating temperature: +5~45c
17. Operating humidity 10%~90%RH
18. Operating machine noise: 60dB(Max)
19. Gross Weight: Approx. 38g
20. Outline dimension: W70.2xD32.8xH15.3mm
