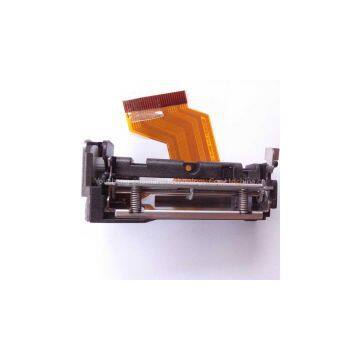

Thermal Printer Mechanism Seiko LTPA245N Replacement

thermal printer mechanism YC245CH

Features:

Seiko LTPA245N-384-E replacement,

Low voltage consumption 4.2V~8.5V,

High quality print character at speed up to 90mm/s,

100 million pulse and 50km print life,

Sided switch easy for platen release.

General specifications:

Printing method: Thermal line dot printing
Number of dots/line: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58
Character size: 12*24, 32 characters/line; 8*16, 48 characters/line; 16*16, 24 characters/line
Printing speed (mm/s): 90 (8.5V)
W*D*H (mm): 69.2* 28.3*31.7
Weight (g): Approx. 53
Head temperature detection: By thermistor
Out of paper detection: By photo interrupter
Power supply: Printer head 4.2V ~ 8.5V, 0.87A; Dynamo 4.2V ~ 8.5V, 1A; Logic voltage 3.0V ~ 5.25V, 0.1A
Pulse activation: 100 million (Printing rate=12.5%)
Abrasion resistance: 50km
Paper cutting method: Manual
Paper path: 180deg.
Operating noise: 60dB(max.)
Operating temperature (deg): 0~50
Operating humidity (RH): 20% ~ 85%
Storage temperature (deg):  -25 ~ 70
Storage humidity (RH): 5% ~ 90%

Application: pos printer, handheld payment terminal, medical device etc.
