Certification:CE/ROHS/FCC

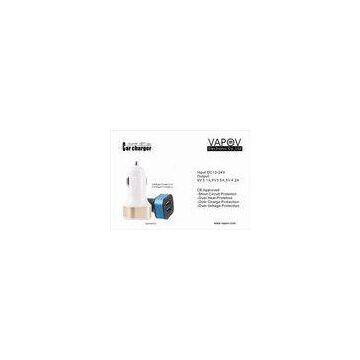

4.2 A Intelligent Dual USB Car Charger For Apple / Android/Samsung Mobile Phone or Tablet PC
1. Input Features:
1) Rated input voltage: DC12-24V
2) Input voltage range: DC10-28V
3) Efficiency: 83-93.8%
2.Output characteristics:
|
Rated output 5VDC 3.1A/3.6A/4.2A |
Specification limits |
Remark |
|
|
Min value |
Max value |
||
|
Unload output voltage |
+4.9VDC |
+5.3VDC |
|
|
Full load output voltage |
+4.75VDC |
+5.25VDC |
|
|
Output current |
0 |
3.1A/3.6A/4.2A |
|
|
Cc mode rate load cold ripple |
mV |
||
|
Over current protection |
A |
Adjustable |
|
|
Turn on delay time |
≤3S |
||
|
Hold up time |
8mS |
Full load |
3. Protective properties:
1) Over current protection
Under any input conditions,when output current is greater than the set current,
the protection mode is on, after output current become lower than the set current, the charger will automatically restart work.
2) Short circuit protection
Under any conditions, when short circuit occurs the protection mode is on, after short circuit disappears, the charger will automatically restart work.
3) Over temperature protection
After the charger works for a long time, if the temperature is higher than that of IC set working temperature, the protection mode is on, if the temperature drops to IC set temperature again, the charger will automatically restart work.
4) Over voltage protection
When output voltage is bigger than the set voltage, the protection mode is on, if the output voltage drops to set voltage again, the charger will automatically restart work.
4.EMI Test Report:
4.Product features
1) Intelligent Power Technology
2) Automatically identify devices( Apple, Android, Samsung etc mobile phone and tablet) and charge them at the most optimized output
