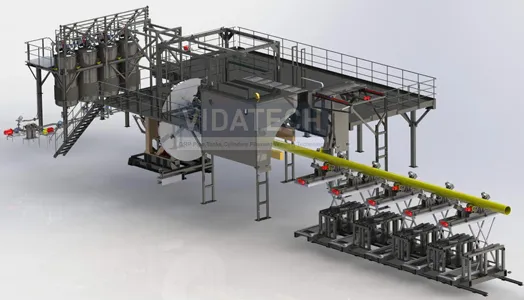

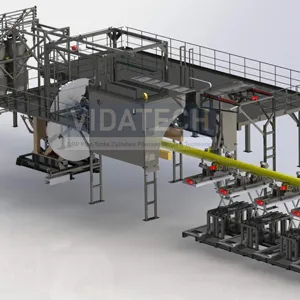

Vidatech continuous filament winding production line of GRP pipes, designed to accommodate a wide range diameters from DN300-DN4000mm, equipped with qualified main filament winding machine with high productivity, advanced software control system and know-how provided.

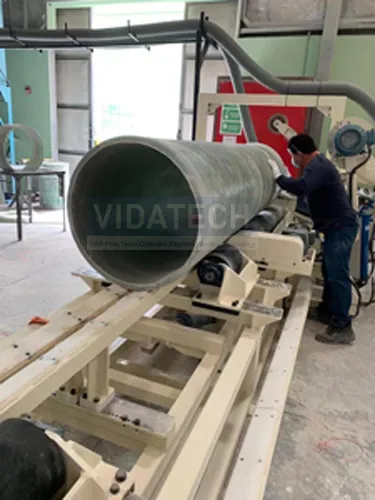

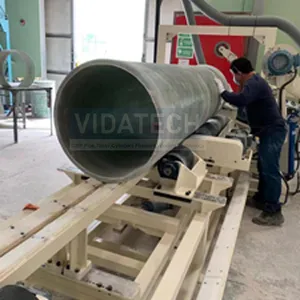

GRP pipe manufacturing is on the rotating mandrel with plate, beams and steel band, dimension depends on the pipe's diameter. The steel band is moving in the axial direction, sliding through the bearings which in the beam. When finished curing in the curing oven, the pipe is automatically cut and calibrated to the required length
Technical data:
1.Type VCFW
2.Diameter(mm) DN300-4000mm
3.Product Length(mm) As required
4.Main filament winding machine,consist of
support-bearing,main-shaft,cam plate,steel brand,exist head,discs,aluminum beam,welding machine
continuous fiber+resin impregnated system,glassfiber chopper
raw materials dosing system,resin mixer,lifting tables,roving stand,sand transport system
online calibrationg system,infrared curing system,styrene ventilation,dustcollector,etc,
Electric control system,feature,
online or offline vivid image simulation.
Production raw material consuption control by software.
Production data,recording,reporting,analysis,storage.
Auxiliary equpment
Sleeve grooving machine
Sleeve hydrotesting machine
Offline calibratiing machine
Offline hydrotesting machine
GRP pipe laboratory and testing machine
Advantage:
Vidatech is the most professional CFW manufacture in China have advanced technology comes from Europe, approaching to advanced world technical levels.
All the design , drawings, technology non copy. Good basic in filament winding.
PLC computer controlled software are modern, advanced, is supplied for monitoring, controlling and reporting the GRP pipe production process by vivid display on the screen.
Vidatech provide advanced know-how, and complete solution of the GRP pipe making.
Successful trail commissioning, good after-sale-service for GRP pipe continuous filament winding
