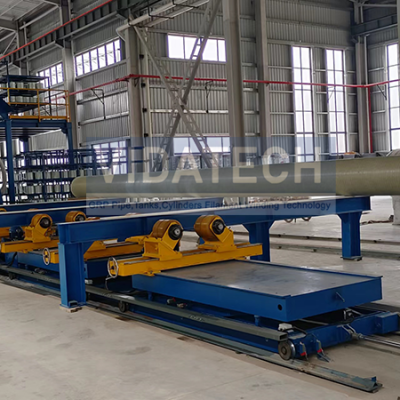

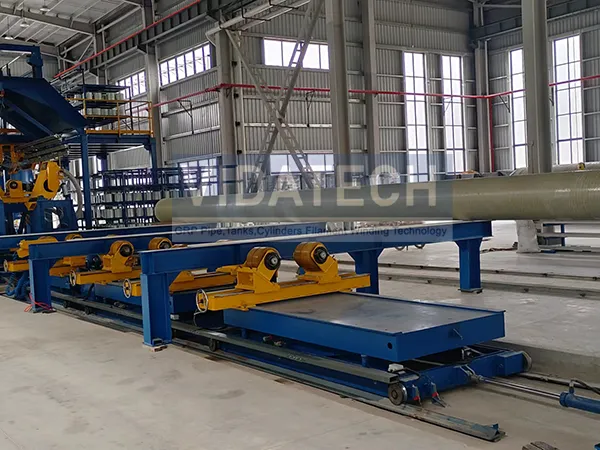

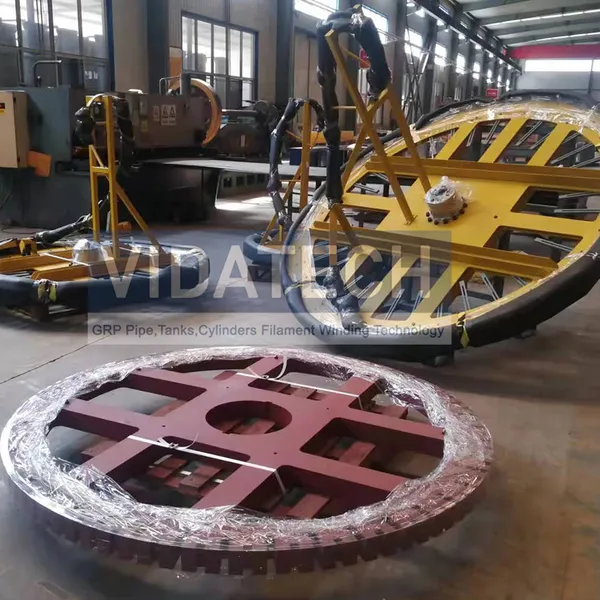

Fiberglass Pipe manufacturing is on the rotating mandrel with plate, beams and steel band, dimension depends on the pipe's diameter. The steel band is moving in the axial direction, sliding through the bearings which in the beam. When finished curing in the curing oven, the pipe is automatically cut and calibrated to the required length.
Technical Specification:
Standard:
ISO 10539:2004,
AWWA: C950-01
AWWA: M45
Consist of :
CFW Continuous Filament Winding Machine.
Resin system
Silica sand feeding system

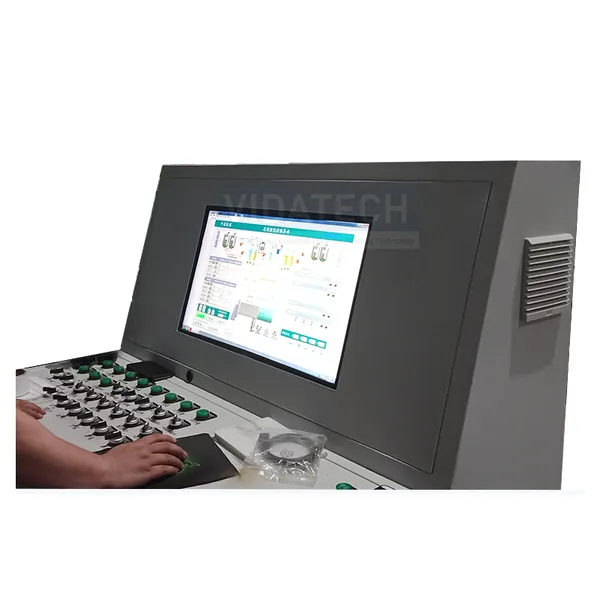

E-control system
Auxiary Machine including,
Sleeve Grooving Machine
Sleeve Joining Machine
Pipe Hydro-testing Machine
Sleeve Hydro-testing Machine
Off-line Rectification Machine
Application:
Sewer,waste water
Hydropower
Drinking water,potable water
Irrigation transmission
Raw water
Cooling water
Industrial pipeline system
Seawater discharge (intake/outfall system)
