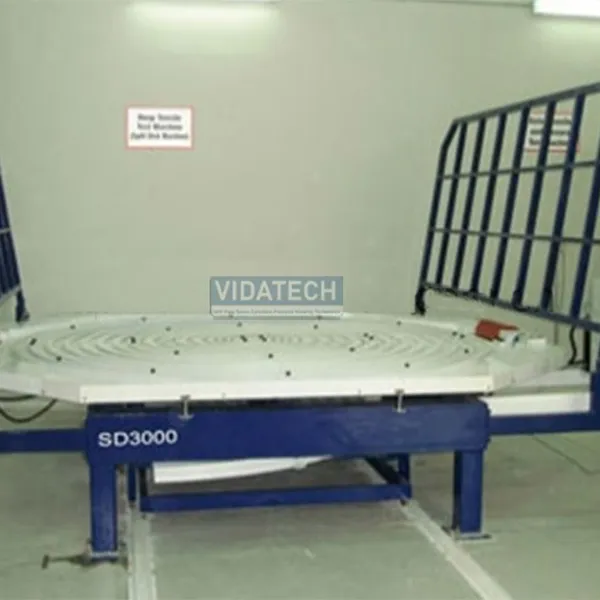

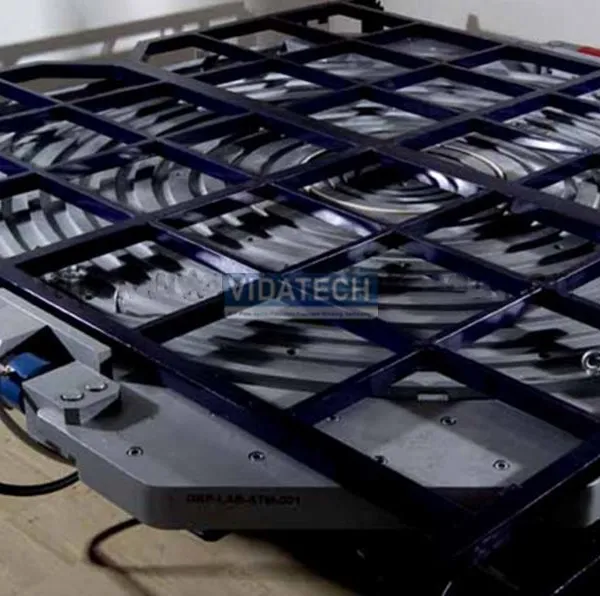

Glass Reinforced Polyester Split Disc Testing Machine
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Tensile Strength
Warranty:
360days
Weight:
100-500Kg
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GRP Pipe Ring Stiffness Testing MachinesNegotiableMOQ: 1 Unit -
GRP Gre Pipe Cyclic Hydraulic Test SystemsNegotiableMOQ: 1 Unit
-
GRP Pipe Ring Stiffness Testing MachinesUS$ 10000 - 20000MOQ: 1 Unit
-
GRE Pipes GRP Pipes Universal Testing MachneNegotiableMOQ: 1 Piece
-
GRP Pipe Gre Pipe Hdb Pdb Long-Terms Testing SystemNegotiableMOQ: 1 Unit
Type
Other, Tensile Strength
Warranty
360days
Weight
100-500Kg
Power Source
AC380V
After-sales Service
360days
Accuracy Grade
Other, 0.2
Max Diameter of Workpiece
>3200mm
Mass Scope of Workpiece
5000kg
Maxcapacity
<1000KN
Load Way
Electronic Load
Oil Cylinder Position
Under
Control
Computer Control
Loading Method
Dynamic Load
Display
Digital
Channels Deep
20mm
Electric Control
PLC
Transport Package
in Bulk
Specification
DN50-DN4000
Trademark
Vidatech
Origin
China
Fiberglass PIpe Split Disk Testing Machines
GRP pipes Hydraulic split disk testing machines for GRP pipes apparent hoop tensile strength testing
General description:
Hoop strength is the most important performance for guarantee the GRP pipe's quality.
Split disk testing machine for perform the fracture testing for GRP pipe.DN50-DN2600-DN4000mm
1.25mm (1 inch) groove depth
2. Closed loop speed control system
3.500KN load capacity
Advantage:
24 bit electronic measurement system guarantee ultra precision.
Thick and high strength test specimen can be tested
Safety with covers for protecting the operator avoid from burst fragments
Dual control testing system Space efficiency.
Easy and safe operation.
Standard:
Test procedure according to ASTM2290, BS 1394, BS 5480 and ISO 12709 hoop testing standards
