Filament winding machine for Fiberglass Reinforced Plastic Tank 500,1000,2000,300liters
General Description

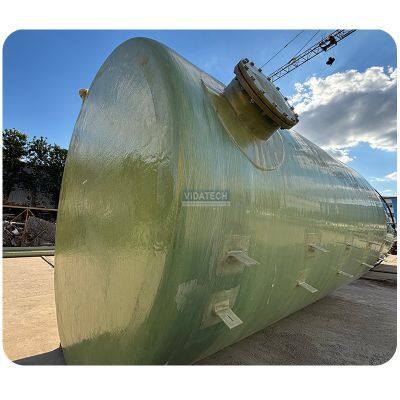

This filament winding machine is specially design for small scale and medium size type FRP tank. Single unit machine. With semi-sphere domes on both sides, then combine with resin.
Application:
widely used in the industry chemical storage
crude oil
food processing
silo storage for grain
Scrubbers
Standard:
ASTM D3299-88 for filament winding glass fiber reinforced thermosetting resin chemical resistant tank
HG T20696-1999 for FRP equipment design for chemical industry.
Advantage:
1. Easy and convenient operation, and computer control system.
2. Keep low consumption of the raw materials.
3. Experienced tank produciton technology assitant.
Technical Specification
| 1 | Vertical Tank | VHT |
| 2 | Length(mm) | 12000 |
| 3 | Diameter(mm) | DN1000-4000 |
| 4 | Product Height(mm) | 800 -11000 |
| 5 | Product volum(cmb) | 1-120 |
| 6 | Product Weight(kgs) | 150-6200 |
| 7 | Winding pattern | Hoop √ Helical √ ( converted automatically) |
| 8 | Corollary equipment | Liner making machine √ |
| 9 | Winding angle | 45°-90° |
| 10 | Fiber drawing speed | ≤100m/min |
| 11 | Fiber band width | 0-100mm |
| 12 | Transmission system | gear & rack |
| 13 | Operation method | Manually √ Semi-auto √ Automatically √ |
| 14 | Motor brand | ABB |
| 15 | Speed reducer brand | NORD |
| 16 | Frequency converter brand | SIEMENS |
| 17 | Computer control system | ADVANTECH |
| 18 | Software program | √ |
| 19 | Operation system | Windows, Chinese/English interface menu |
| 20 | Technical Documentation | Machine operation manual √ Machine maintance manual √ Darwing of standard parts,wearing part and assembly √ Computer software operation manual √ |
| 21 | Machine guarantee expiry | One year |
| 22 | Installation Commissiong | √ |
| 23 | Trail production train | Optional |
Horizontal Tank Parameter Table

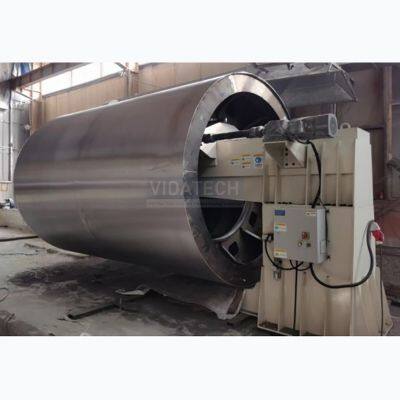

Horizontal Tank Filament winding machine lay-out drawing Cantilever type
Mainly for tank's production
Production of tank's dome head, and tank shell.
Better for two tank jointing, not need tank's dome by hand-layup
Nice for appearance
