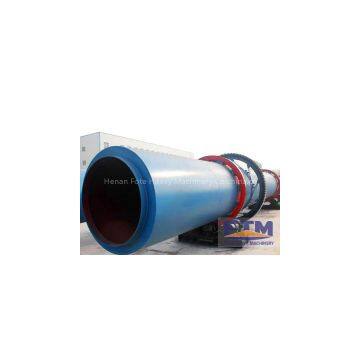

Bentonite Dryer Introduction:
Bentonite dryer is widely used in building materials, metallurgy, chemical industry and cement industry to dry concentrate fines, slag, limestone, pulverized coal, clay, kaolin and other materials, which has obvious effect on drying kaolin, clay and bentonite. It has an especially good effect in kaolin, clay and bentonite drying. Through many years' research by Fote Machinery, the new-type bentonite rotary dryer is more energy-saving and consumption reduction.
Bentonite Dryer Features:
1. Strong handling capability, small fuel consumption and low drying cost.
2. Its feature of high temperatureresistance enables it to dry materials rapidly with high-temperature air.
3. Our experts take production allowance into consideration. Its strong extensibility makes it unnecessary to change equipment even when production increases slightly.
4. Bentonite dryer adopts a self-aligning type tug structure in which tug has a good cooperation with the rolling ring. So the abrasion and power consumption is reduced greatly.
5. The especially designed retainer wheel can reduce the horizontal thrust brought by slant of the equipment.
6. Strong overload resistance ability, stable and reliable functioning of cylinder.
Bentonite Dryer Working Principle:

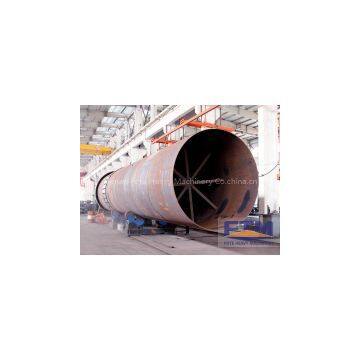

Bentonite dryer is mainly composed of revolved body, lifting plate, transmission device, supporting device and sealing ring. Bentonite drying machine is a cylinder slightly tilted with the ground. Materials enter into cylinder from the higher side, and then the hot gas and stream flows into cylinder with materials. With the rotating of cylinder, the materials will flow to the lower side. The shoveling plate on its inner wall lifts and throws materials again and again, expanding the contact area between materials and hot air, thus improving its drying productivity and pushing materials forward. The products after drying are collected from the bottom of rotary dryer for bentonite
| Specification(mm) | Rotating Speed(r/min) | Obliquity(%) | Inlet Air Temperature(℃) | Production Capacity(t/h) | Power(KW) | Weight(t) |
| Φ600×6000 | 3-8 | 3-5 | ≤700 | 0.5-1.5 | 3 | 2.9 |
| Φ800×8000 | 3-8 | 3-5 | ≤700 | 0.8-2.0 | 4 | 3.5 |
| Φ800×10000 | 3-8 | 3-5 | ≤700 | 0.8-2.5 | 4 | 4.5 |
| Φ1000×10000 | 3-8 | 3-5 | ≤700 | 1.0-3.5 | 5.5 | 5.6 |
| Φ1200×10000 | 3-8 | 3-5 | ≤700 | 1.8-5 | 7.5 | 14.5 |
| Φ1200×12000 | 3-8 | 3-5 | ≤700 | 2-6 | 11 | 14.8 |
| Φ1500×12000 | 2-6 | 3-5 | ≤800 | 3.5-9 | 15 | 17.8 |
| Φ1800×12000 | 2-6 | 3-5 | ≤800 | 5-12 | 18 | 25 |
| Φ2200×12000 | 1.5-6 | 3-5 | ≤800 | 6-15 | 18.5 | 33 |
| Φ2200×18000 | 1.5-6 | 3-5 | ≤800 | 10-18 | 22 | 53.8 |
| Φ2200×20000 | 1.5-6 | 3-5 | ≤800 | 12-20 | 30 | 56 |
| Φ2400×20000 | 1.5-5 | 3-5 | ≤800 | 18-30 | 37 | 60 |
| Φ3000×20000 | 1.5-5 | 3-5 | ≤800 | 25-35 | 55 | 78 |
| Φ3000×25000 | 1.5-5 | 3-5 | ≤800 | 32-40 | 75 | 104.9 |
Bentonite Dryer Manufacturer:
Fote Machinery has many years of production and sales experiences of bentonite drying machine. Technical personnel of our company has the strength to design a set of specialized drying scheme and provide detailed quotation of the bentonite dryers at the same time. According to the special characteristic of bentonite and analyzing the effect of dryer structure to the productivity and quality of bentonite, our company designs the dryer with comprehensive technical transformation, which improves the material fill rates and prolong the time of material leaving in the cylinder.If you have any requests or suggestions, please contact our online customer services or send emails to us, and we will contact you as soon as possible.
