Quartz Sand Dryer Applications:

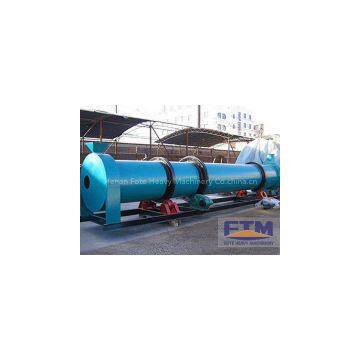

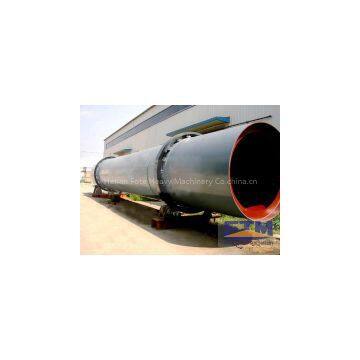

Quartz sand dryer, also called as quartz sand rotary dryer, is mainly used to dry materials with a certain humidity and granularity. It can dry all kinds of quartz sand, ore powder, limestone, coal powder, clay, yellow sand, foundry sand, metal concentration and tailings in building materials, metallurgy, chemistry and cement industry. Similar to mineral powder dryer, quartz sand dryer or silica sand dryer is mainly used to dry materials with humidity and particle in certain range for building material, metallurgy, chemical industry, cement industry, various mineral powder, limestone, coal, quartz sand, clay, sand, foundry sand, scrubbed and all kinds of metal concentrates, tailings and slightly contaminated material which can resist high temperature.
Quartz Sand Dryer Advantages:
1.Strong drying strength.
2. High Automatic Degree
3. Low Drying Cost
4. Long Service Life
| Item | φ2.0×6m | φ2.5×6.5m | φ2.7×7m | φ3×7m | φ3.2×7m | φ3.6×8m | φ4.2×8.5m | |
| Diameter of outer cylinder (m) | 2.0 | 2.5 | 2.7 | 3 | 3.2 | 3.6 | 4.2 | |
| Length of outer cylinder (m) | 6 | 6.5 | 7 | 7 | 7 | 8 | 8.5 | |
| Cylinder volume (m³) | 18.84 | 31.89 | 40.5 | 49.46 | 56.26 | 81.38 | 118 | |
| Rotating speed of cylinder (rpm) | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | |
| retention time of materials (min) | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | |
| Initial moisture of materials (%) | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | |
| Final moisture of materials (%) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| Highest intake air temperature ( ℃ ) | 750-900 ℃ | 750-900 ℃ | 750-900 ℃ | 750-900 ℃ | 750-900 ℃ | 750-900 ℃ | 750-900 ℃ | |
| Production capacity (T/H) | Slag | 20-25 | 25-30 | 30-35 | 35-10 | 40-45 | 50-65 | 70-85 |
| Coal ash | 10-17 | 17-21 | 20-25 | 23-27 | 25-30 | 30-45 | 45-63 | |
| Yellow sand | 20-27 | 25-40 | 27-45 | 30-45 | 35-50 | 55-75 | 75-99 | |
| Motor type | Yr160m-4 | Yr132m-4E | Yr160m-4 | Yr160m-4 | Yr132m-5E | Yr160m-4E | Yr160m-4E | |
| Motor power (kw) | 7.5×2 | 11×2 | 7.5×4 | 7.5×4 | 11×4 | 15×4 | 18.5×4 | |
| Reducer type | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-8 | XWD-8 | |
| Velocity ratio of reducer (I) | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 |
Quartz Sand Dryer Manufacturer:
Fote Machinery is a professional dryer machine manufacturer, and we have various kinds of dryer machines for sale, which has reasonable structure, top quality and thoughtful services. If you want to know more information about the dryer machine price, please leave us a message below or send emails to us, we will answer you as soon as possible!
