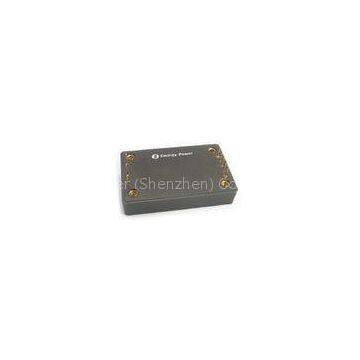

24v to 5v Dc-dc Converter / Power Supply for Military WZ100-28S5-PEM photo-1
Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Enargy
Place of Origin:
China
Model Number:
WZ100-28S5-PEM
Contact Supplier Request Quote Chat Now
Enargy Power (Shenzhen) Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Enargy
Place of Origin China
Model Number WZ100-28S5-PEM
Delivery Time:1-8 Weeks

DC-DC Converters 100W Output 5V WZ100-28S5-PEM

Key Features

Output Power: 100W

Wide Input Range: 18~36Vdc

High Conversion Efficiency: Up to 92%

Line Regulation to ±1%

Load Regulation to ±1%

Input Under-voltage Lock-out

Output Voltage Trim: ±8% Vout

Output Over-Current Protection

Output Over- Voltage Protection

Hiccup Mode Short Circuit Protection

Isolation Voltage :1500V

Enable (ON/OFF) control

Product Overview

These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.

1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter Min Typ Max Units Notes
Input Voltage     45 Vdc Continuous, non-operating
    40 Vdc Continuous, operating
    45 Vdc Operating transient protection,<100mS
Isolation Voltage     2000 Vdc Input to Output
Operating Temperature -55   100 ℃ PCB Temperature
Storage Temperature -65   115 ℃
Enable to -Vin Voltage -0.5   10 Vdc

1.2 Input Characteristics

Parameter Min Typ Max Units Notes
Input Voltage Range 18 28 36 Vdc
Under-Voltage Lockout   17.5 17.9 Vdc Recovery point
15.5 16.5   Vdc Protect point
Maximum Input Current     6.8 A Vin min,Output full load
Efficiency       % Rated input;Rated load
Dissipation,Standby   5 11 W No Load
External Inpu   100   μF

1.3 Output Characteristics

Parameter Min Typ Max Units Notes
Output Voltage Set point 4.95 5.00 5.05 Vdc Rated input voltage,No load
Output Voltage Range 4.90 5.00 5.10 Vdc Rated input voltage, load
Line Regulation   ±0.50 ±1.0 %
Current Limit 22 24 26 A Output voltage 95% of nominal
Short Circuit Current     26 A
Ripple (RMS)   50   mV Nominal input; full load; 20 MHz bandwidth.
Noise(Peak-to-Peak)   85   mV
Capacitive load from themachine     6000 μF
External Output 300     μF

1.4 Dynamic Response Characteristics

Parameter Min Typ Max Units Notes
Change In Output Current   230   mV 50% to 75% to 50% Iout max; (di/dt= 0.1A/µs)
  250   mV 50% to 75% to 50% Iout max; (di/dt= 2.5A/µs)
Dynamic recovery time   300   μS
Turn-on Time   100   mS Starting from vin to vout rise to 90%
Turn-off overshoot
