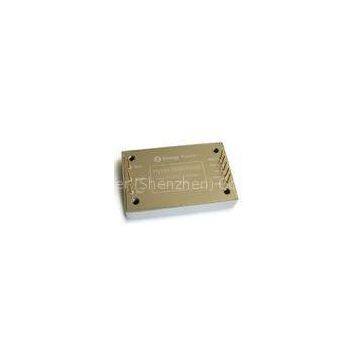

100 Watt Quarter Brick Dc-dc Converter Output 28V YN100-28S28-PEMB

DC-DC Converters 100W Output 28V YN100-28S28-PEMB

Key Features

Output power: 100W

Wide input range:18-36Vdc

High conversion efficiency: Up to 91%

Line regulation to ±1.0%

Load regulation to ±1.0%

Fixed operating frequency

Isolation voltage :1500V

Enable (ON/OFF) control

Output over-load protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim: ±8% Vout

Package: Open Frame

Quarter Brick: 2.32×1.49×0.45in

59×38×11.5mm

Product Overview

These DC-DC converter modules use advanced power

processing, control and packaging technologies to provide

the performance, flexibility, reliability and cost effectiveness

of a mature power component. High frequency Active Clamp

switching provides high power density with low noise and

high efficiency.

Product’s Introduction

The YN series is an independently regulated single output converter that uses the industry standard quarter brick package size. The very high efficiency is a result of ENARGY CORP patented topology that uses synchronous rectification and an innovative construction design to minimize heat dissipation and allow extremely high power densities. The power dissipated by the converter is so low that a heat sink is not required, which saves cost, weight, height, and application effort. All of the power and control components are mounted to the multi-layer PCB substrate

with highyield surface mount technology, resulting in a more reliable product.

1. Electric Characteristics

Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature,

unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data

testing at Ta=25oC except especial definition.

1.1 Absolute Maximum Ratings

1.2 Input Characteristics

1.3 Output Characteristics
