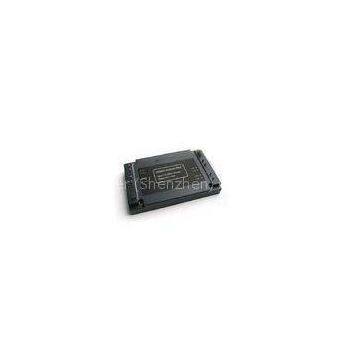

Military Power Supply 800W Output 25V ZG800-220S25-PEC
Key Features
Output power: 800W
Wide input range: 170-280Vdc
High conversion efficiency: Up to 93%
Line regulation to ±0.5%
Load regulation to ±0.5%
Fixed operating frequency
Isolation voltage :2000V
Load sharing to 20 units
Enable (ON/OFF) control
Output over-load protection
Hiccup mode short circuit protection
Over-temperature protection
Input under-voltage lock-out
Output voltage trim: ±5%
Product Overview
These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.
Product’s Introduction
The ZG series is an independently regulated single output converter that uses the industry nonstandard brick package size. The very high efficiency is a result of ENARGY CORP patented topology that uses synchronous rectification and an innovative construction design to minimize heat dissipation and allow extremely high power densities. The power dissipated by the converter is so low that a heat sink is not required, which saves cost, weight, height, and application
effort. All of the power and control components are mounted to the multi-layer PCB substrate with highyield surface mount technology, resulting in a more reliable product.
1. Electric Characteristics
Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature, unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data testing at Ta=25oC except especial definition.
1.1 Absolute Maximum Ratings
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Input Voltage |
300 |
Vdc |
Continuous, non-operating |
||
280 |
Vdc |
Continuous, operating |
|||
300 |
Vdc |
Operating transient protection,<100mS |
|||
Isolation Voltage |
2000 |
Vdc |
Input to Output |
||
Operating Temperature |
-55 |
100 |
℃ |
||
Storage Temperature |
-65 |
115 |
℃ |
||
Enable to Vin- Voltage |
-2.0 |
10 |
Vdc |
1.2 Input Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Input Voltage Range |
170 |
220 |
280 |
Vdc |
Continuous |
Under-Voltage Lockout |
165 |
169 |
Vdc |
Turn-on Threshold; min. load |
|
125 |
150 |
Vdc |
Turn-off Threshold; half load |
||
Maximum Input Current |
6 |
A |
Full Load;170Vdc Input |
||
Efficiency |
93 |
% |
Full Load; Rating Input voltage; Figures 1-2 |
||
Disabled Input Current |
20 |
mA |
