UL Certificate Factory Price Electric Motor Copper Coil Wire

UL Certificate Factory Price Electric Motor Copper Coil Wire thumbnail-1
UL Certificate Factory Price Electric Motor Copper Coil Wire thumbnail-2
UL Certificate Factory Price Electric Motor Copper Coil Wire thumbnail-3
UL Certificate Factory Price Electric Motor Copper Coil Wire thumbnail-4
UL Certificate Factory Price Electric Motor Copper Coil Wire thumbnail-5
UL Certificate Factory Price Electric Motor Copper Coil Wire photo-1
UL Certificate Factory Price Electric Motor Copper Coil Wire photo-2
UL Certificate Factory Price Electric Motor Copper Coil Wire photo-3
UL Certificate Factory Price Electric Motor Copper Coil Wire photo-4

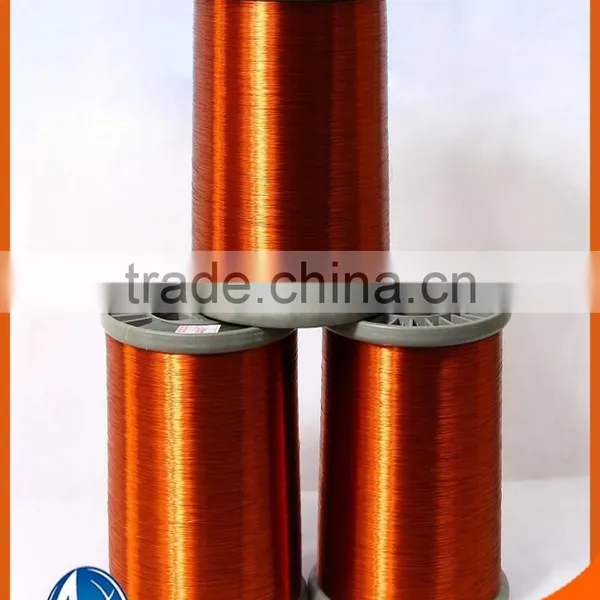

UL Certificate Factory Price Electric Motor Copper Coil Wire photo-5
US$ 8 - 10.05 MOQ: 300 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Amity or OEM
Model Number:
electric motor copper coil wire
Contact Supplier Request Quote Chat Now
Henan Amity Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Amity or OEM
Model Number electric motor copper coil wire
Type Insulated
Application Other, motors,transformers,appliances winding
Conductor Material Other, Copper,Aluminum,CCA
Conductor Type Solid
Insulation Material Enameled

Specifications

electric motor copper coil wire
1.130,155,180,200degree
2.Dia:0.11-6mm
3.standard:JISC,IEC,NEMA,GB
4.UL,Rohs,ISO approved

UL approved factory price electric motor copper coil wire



We mainly supply 130,155,180&200 degree copper/aluminum/CCA electric motor copper coil wire

with high qulaity and competitive price.



Size:

copper electric motor coil wire :0.11-5.0mm /AWG5-AWG37/BWG7-BWG35/SWG6-SWG41

aluminum electric motor coil wire :0.13-6.0mm/ AWG3-AWG36/BWG4-BWG37/SWG4-SWG38

copper clad aluminum electric motor coil wire :0.12-2.5m

Flat motor coil wire:Thickness(a): Φ0.8mm-5.0mm, Width(b): Φ2-16mm





1.Copper electric motor coil wire

standard:

1) 130  degree polyester  electric motor coil wire:IEC60317-34



2) 155 degree polyurethane electric motor coil wire:IEC60317-20:2000&MW 79-C

3) 180 degree polyester-imide  electric motor coil wire: IEC60317-8:2010& MW 30-C
4) 180 degree polyurethane  electric motor coil wire: IEC60317-51:2001& MW 82-C

5) 200 degree polyester-imide overcoated  polyamide-imide  electric motor coil wire

    IEC60317-13:2010& MW 35-C



 2.Aluminum electric motor coil wire

 Standard:

1) 130 /155 degree polyester electric motor coil wire: IEC60317-0-3

2) 180 degree modified electric motor coil wire:IEC60317-15



3. CCA copper clad aluminum electric motor coil wire

Solderable Polyurethane enameled CCA wire Class 130

Solderable Polyurethane enameled CCA wire Class 155

Solderable Polyurethane enameled CCA wire Class 180

Polyester enameled CCA wire class 130

Midified Polyester enameled CCA wire class 155

Polyester-imide enameled CCA wire class 180





 Test Report of copper electric motor coil wire

Name

Enameled Copper Wire

Type

QZY-2/180/1EIW

Diameter

AWG18

Standard

IEC60317-8-2010

Date

Nov 20th,2012

Test Item

Unit

Technical Requirement

Test Result

Appearance



bright and clean, Uniform color,

Ok



Conductor Diameter

mm

1.024±0.011

1.022

Thickness of insulation film

mm

>= 0.065

0.085

Overall Diameter

mm

<=1.121

1.107

Mechanical properties

Elongation



>=30 %

38%

spring-back angle



<=41

39

Flexibility and adhesion

winding test

1D,no crack

ok

Jerk test

No Crack, and No losing adhesion

ok

scratch resisting(Average)

N

11.6

13.88

scratch resisting(Min)

N

9.80

13.67

Thermal propeties

heat shock

N

200°C,D=3.55mm,crack free

ok

cut-through resistance

N

300°C, 2Min no breakdown

ok

Chemical resistance

Resistance to solvent

H

1H

1H

Electrical properties

DC resistance at 20°C

Ω/m

0.02015-0.02139

0.02077

Breakdown Voltage

/room temperature

KV

>=5.0 kV

8.0,8.0,8.0,8.0,8.0

Enamel Film continuity



<=0 /30m

0

package



Meet the export standards

Ok

Quality Control Result



Ok





UL certificate factory price electric motor copper coil wire

UL certificate factory price electric motor copper coil wire

UL certificate factory price electric motor copper coil wire

UL certificate factory price electric motor copper coil wire
