Specifications
magnet winding wire1.130,155,180,200 degree
2.Dia.:0.11-6mm
3.standard:JISC,IEC,NEMA,GB
4.UL,Rohs,ISO certificate

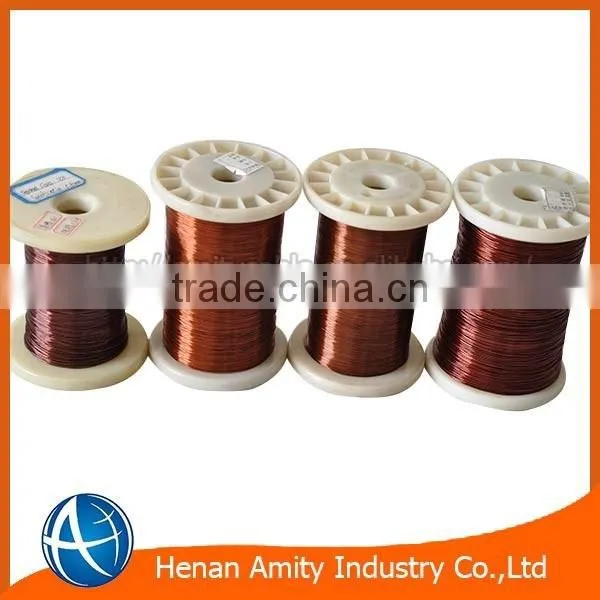

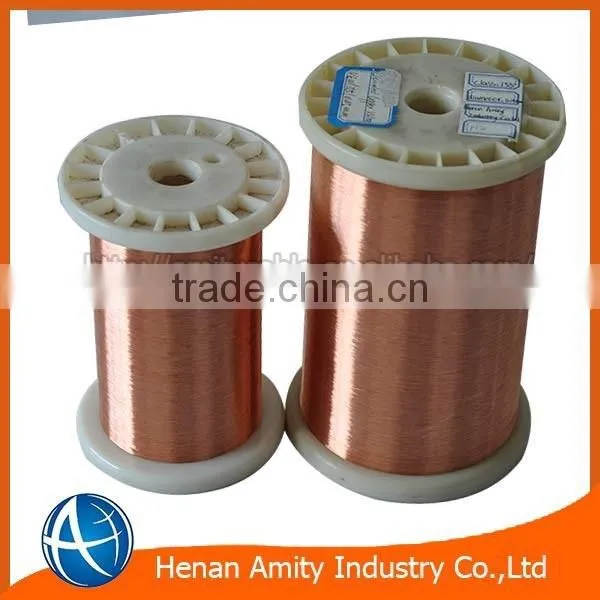

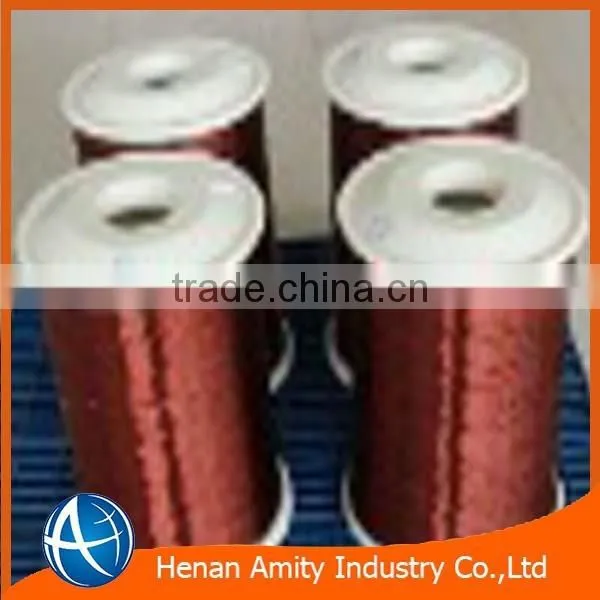

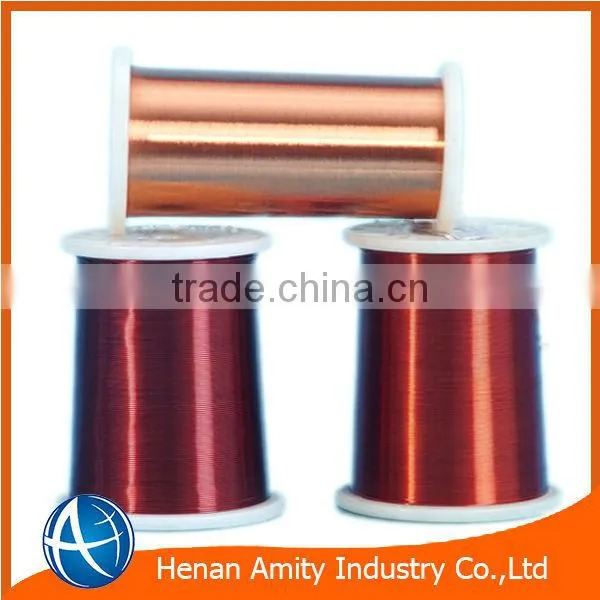

UL approved factory price magnet winding wire
We mainly supply 130,155,180&200 degree copper and aluminum magnet winding wire with high qulaity and competitive price.
Size:
copper magnet winding wire :0.11-5.0mm /AWG5-AWG37/BWG7-BWG35/SWG6-SWG41
aluminum magnet winding wire :0.13-6.0mm/ AWG3-AWG36/BWG4-BWG37/SWG4-SWG38
copper clad aluminum magnet winding wire :0.12-2.5mm
1.Copper magnet winding wire
standard:
1) 130 degree polyester enameled copper magnet winding wire :IEC60317-34
2) 155 degree polyurethane enameled copper magnet winding wire:
IEC60317-20:2000
MW 79-C
3) 180 degree polyester-imide enameled copper magnet winding wire:
IEC60317-8:2010
MW 30-C
4) 180 degree polyurethane enameled copper magnet winding wire:
IEC60317-51:2001
MW 82-C
5) 200 degree polyester-imide overcoated polyamide-imide enameled copper magnet winding wire
IEC60317-13:2010
MW 35-C
2.Aluminum magnet winding wire
Standard:
1) 130 /155 degree polyester enameled aluminum magnet winding wire: IEC60317-0-3
2) 180 degree polyester-imide enameled aluminum magnet winding wire:IEC60317-15
3. CCA copper clad aluminum magnet winding wire
Solderable Polyurethane enameled CCA magnet winding wireClass 130
Solderable Polyurethane enameled CCA magnet winding wire Class 155
Solderable Polyurethane enameled CCA magnet winding wire Class 180
Polyester enameled CCA magnet winding wire class 130
Midified Polyester enameled CCA magnet winding wire class 155
Polyester-imide enameled CCA magnet winding class 180
Send Inquiry to This Supplier
