Specifications
round enameled aluminum wire1. 15 years' experience in manufacturing and trading
2. fast response and delivery
ü Aluminum enameled wire
Standard:
1) 130 /155 degree polyester enameled wire: IEC60317-0-3
2) 180 degree modified enameled wire:IEC60317-15
Test Report of copper electric motor winding wire
Name |
Copper Enameled Wire |
|||
Type |
QZY-2/180/1EIW |
|||
Diameter |
AWG18 |
|||
Standard |
IEC60317-8-2010 |
|||
Date |
Nov 20th,2012 |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
|
Conductor Diameter |
mm |
1.024±0.011 |
1.022 |
Thickness of insulation film |
mm |
>= 0.065 |
0.085 |
|
Overall Diameter |
mm |
<=1.121 |
1.107 |
|
Mechanical properties |
Elongation |
|
>=30 % |
38% |
spring-back angle |
|
<=41 |
39 |
|
Flexibility and adhesion |
winding test |
1D,no crack |
ok |
|
Jerk test |
No Crack, and No losing adhesion |
ok |
||
scratch resisting(Average) |
N |
11.6 |
13.88 |
|
scratch resisting(Min) |
N |
9.80 |
13.67 |
|
Thermal propeties |
heat shock |
N |
200°C,D=3.55mm,crack free |
ok |
cut-through resistance |
N |
300°C, 2Min no breakdown |
ok |
|
Chemical resistance |
Resistance to solvent |
H |
1H |
1H |
Electrical properties |
DC resistance at 20°C |
Ω/m |
0.02015-0.02139 |
0.02077 |
|
Breakdown Voltage /room temperature |
KV |
>=5.0 kV |
8.0,8.0,8.0,8.0,8.0 |
|
Enamel Film continuity |
|
<=0 /30m |
0 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||

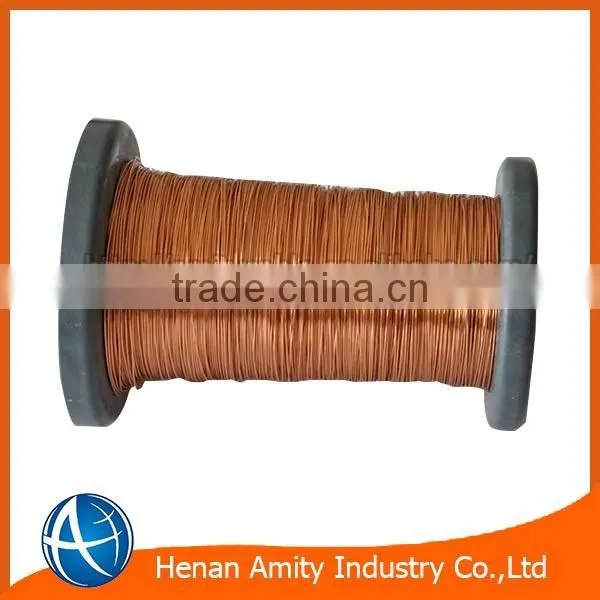

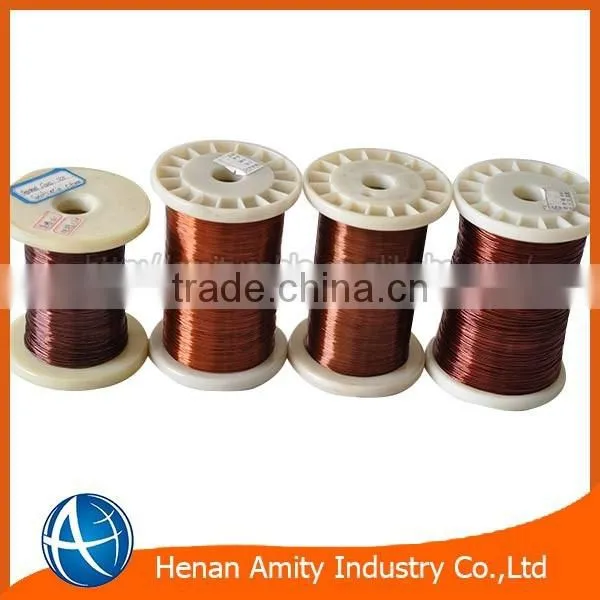

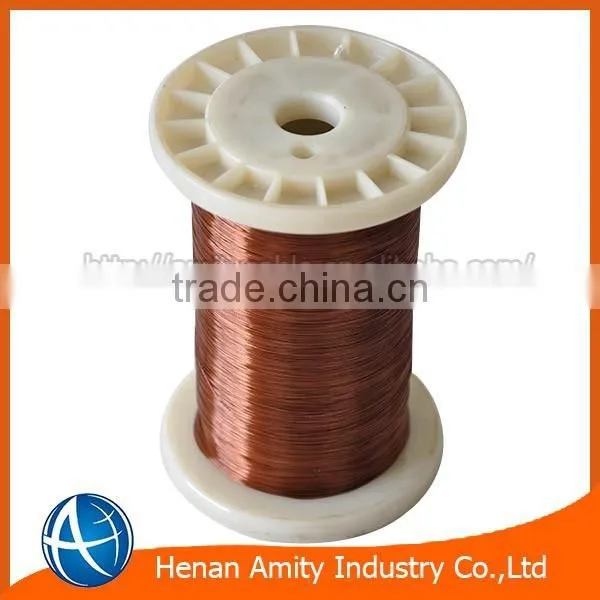

picture show
Learn about us
Henan Amity Industry Co.,Ltd was established in 1996, with an area of 58980 square meters in Zhengzhou city, integrating R&D, production and sales of power cable and wires. We have 600 staff members, including 80 advanced engineers, 98 technicians with different speciality and more than 300 skilled workers. Henan Amity Industry is a specialized enterprise producing all kinds of power cables, wires and cable accessories. Our main products include:AAC, AAAC& ACSR, Aerial bundle cables up to 11kv, PVC insulated wire and flexible wire, Control cable, Enameled wire, PVC insulated power cable, XLPE insulated power cable up to 220kv, Galvanized steel wire, Rubber insulated cable, Mining cable, Fire retardant cable, Flame retardant cable, Connecting wire of electric motor, Underground cable for arming, and Lighting cable.
