0.70mm Enameled Copper Wire Made for INDIA Market

0.70mm Enameled Copper Wire Made for INDIA Market thumbnail-1
0.70mm Enameled Copper Wire Made for INDIA Market thumbnail-2
0.70mm Enameled Copper Wire Made for INDIA Market thumbnail-3
0.70mm Enameled Copper Wire Made for INDIA Market thumbnail-4
0.70mm Enameled Copper Wire Made for INDIA Market photo-1

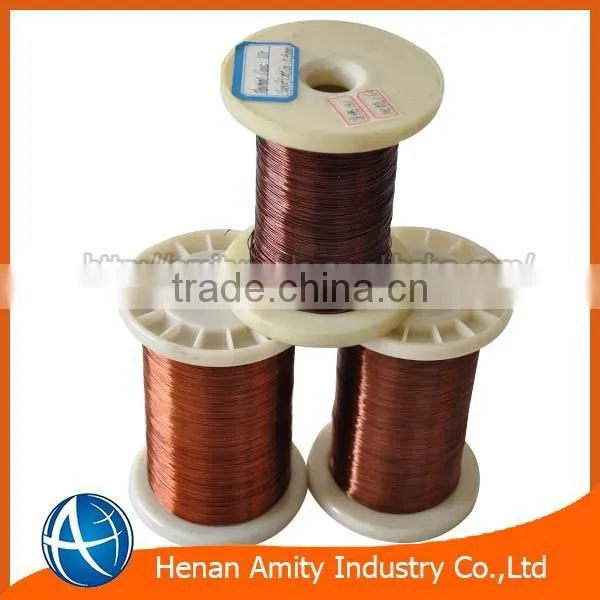

0.70mm Enameled Copper Wire Made for INDIA Market photo-2

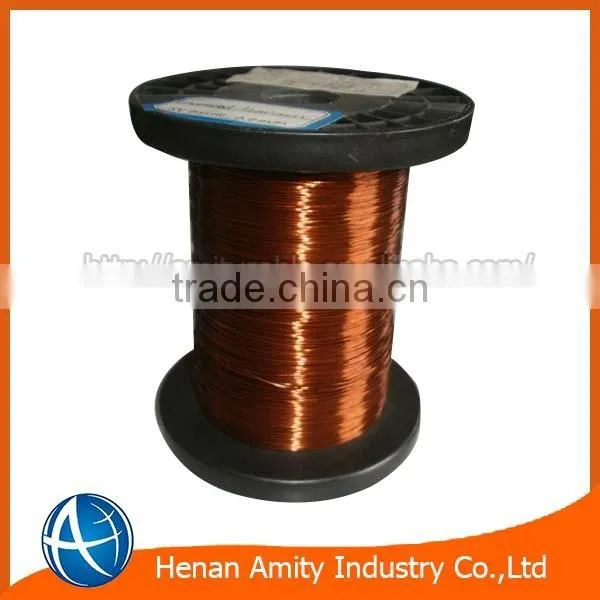

0.70mm Enameled Copper Wire Made for INDIA Market photo-3

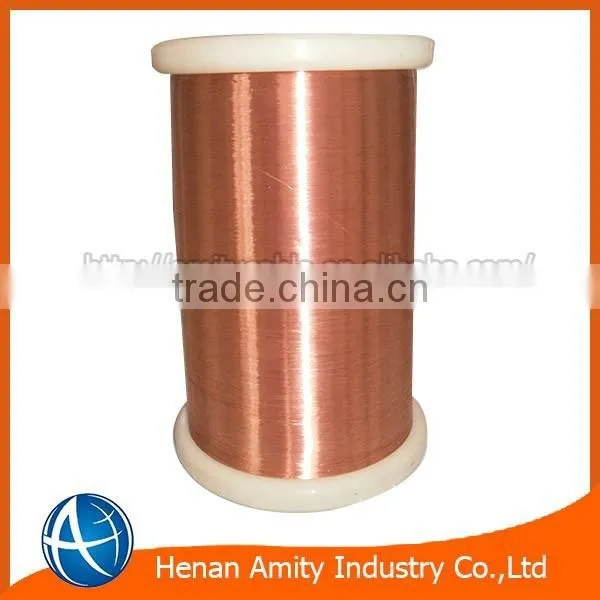

0.70mm Enameled Copper Wire Made for INDIA Market photo-4
US$ 6 - 10 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
AMITY or OEM
Model Number:
IEC
Contact Supplier Request Quote Chat Now
Henan Amity Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name AMITY or OEM
Model Number IEC
Type Insulated
Application Other, motors
Conductor Material Copper
Conductor Type Solid
Insulation Material Enameled

Test Report of copper electric motor winding wire

Name

Copper Enameled Wire

Type

QZY-2/180/1EIW

Diameter

AWG18

Standard

IEC60317-8-2010

Date

Nov 20th,2012

Test Item

Unit

Technical Requirement

Test Result

Appearance



bright and clean, Uniform color,

Ok



Conductor Diameter

mm

1.024±0.011

1.022

Thickness of insulation film

mm

>= 0.065

0.085

Overall Diameter

mm

<=1.121

1.107

Mechanical properties

Elongation



>=30 %

38%

spring-back angle



<=41

39

Flexibility and adhesion

winding test

1D,no crack

ok

Jerk test

No Crack, and No losing adhesion

ok

scratch resisting(Average)

N

11.6

13.88

scratch resisting(Min)

N

9.80

13.67

Thermal propeties

heat shock

N

200°C,D=3.55mm,crack free

ok

cut-through resistance

N

300°C, 2Min no breakdown

ok

Chemical resistance

Resistance to solvent

H

1H

1H

Electrical properties

DC resistance at 20°C

Ω/m

0.02015-0.02139

0.02077

Breakdown Voltage

/room temperature

KV

>=5.0 kV

8.0,8.0,8.0,8.0,8.0

Enamel Film continuity



<=0 /30m

0

package



Meet the export standards

Ok

Quality Control Result



Ok



The physical and mechanical performance of copper clad aluminum wire,copper wire , aluminum wire





conductor

Performance

Copper Clad Aluminum Wire

Copper Wire

Aluminum Wire

Volume ratio of copper (%)

15

109

0

Specific gravity (g/cm3)

3.63

8.89

2.70

Length ratio in same wire diameter and unit weight

2.5: 1

1: 1

3.29: 1

Conductivity (IACS)

70

100

62

Electric resistivity(Ωmm2)

0.02462

0.01724

0.02740

Tensile strength (M pa )

95-135

215-266

68-107

Elongation (%)

≥10

≥20

≥8

Winding performance

good

very good

good

Weight

good

bad

very good

Soldering performance

very good

very good

bad

Direct current resistance

good

very good

good





The category, type, code and thermal classification



Category

Enamel type

Code

Thermal classification

single coat

polyurethane

UEW

130

UEWF

155

polyester

PEW

155

polyester-imide

EIW

180

polyamide-imide

AIW

220

Dual coat

self-bonding polyurethane

SB UEW

130

self-bonding polyester-imide

SB EIW

180

polyurethane over coated with polyamide

UEW-NY

130

UEWF-NY

155

polyester over coated with polyamide

PEW-NY

155

PEWH-NY

180

polyester-imide over coated with polyamide-imide

EIW-AL

200





PICTURE SHOW



Learn about us



Henan Amity Industry Co.,Ltd was established in 1996, with an area of 58980 square meters in Zhengzhou city, integrating R&D, production and sales of power cable and wires. We have 600 staff members, including 80 advanced engineers, 98 technicians with different speciality and more than 300 skilled workers. Henan Amity Industry is a specialized enterprise producing all kinds of power cables, wires and cable accessories. Our main products include:AAC, AAAC& ACSR, Aerial bundle cables up to 11kv, PVC insulated wire and flexible wire, Control cable, Enameled wire, PVC insulated power cable, XLPE insulated power cable up to 220kv, Galvanized steel wire, Rubber insulated cable, Mining cable, Fire retardant cable, Flame retardant cable, Connecting wire of electric motor, Underground cable for arming, and Lighting cable.
