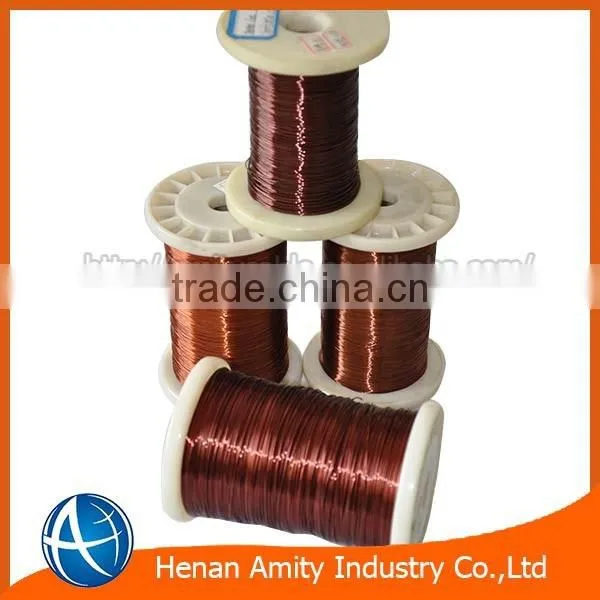

UEW 155 0.6MM round enameled copper wire for motors

Specifications

enameled copper round wire
1. 15 years' experience in manufacturing and trading
2. good insulating varnish

Test Report of copper electric motor winding wire



Name		Copper Enameled Wire
Type		QZY-2/180/1EIW
Diameter		AWG18
Standard		IEC60317-8-2010
Date		Nov 20th,2012
Test Item		Unit	Technical Requirement	Test Result
Appearance			bright and clean, Uniform color,	Ok
	Conductor Diameter	mm	1.024±0.011	1.022
	Thickness of insulation film	mm	>= 0.065	0.085
	Overall Diameter	mm	<=1.121	1.107
Mechanical properties	Elongation		>=30 %	38%
	spring-back angle		<=41	39
	Flexibility and adhesion	winding test	1D,no crack	ok
		Jerk test	No Crack, and No losing adhesion	ok
	scratch resisting(Average)	N	11.6	13.88
	scratch resisting(Min)	N	9.80	13.67
Thermal propeties	heat shock	N	200°C,D=3.55mm,crack free	ok
	cut-through resistance	N	300°C, 2Min no breakdown	ok
Chemical resistance	Resistance to solvent	H	1H	1H
Electrical properties	DC resistance at 20°C	Ω/m	0.02015-0.02139	0.02077
	Breakdown Voltage /room temperature	KV	>=5.0 kV	8.0,8.0,8.0,8.0,8.0
	Enamel Film continuity		<=0 /30m	0
package			Meet the export standards	Ok
Quality Control Result			Ok



PICTURE SHOW





Learn about us

Henan Amity Industry Co.,Ltd was established in 1996, with an area of 58980 square meters in Zhengzhou city, integrating R&D, production and sales of power cable and wires. We have 600 staff members, including 80 advanced engineers, 98 technicians with different speciality and more than 300 skilled workers. Henan Amity Industry is a specialized enterprise producing all kinds of power cables, wires and cable accessories. Our main products include:AAC, AAAC& ACSR, Aerial bundle cables up to 11kv, PVC insulated wire and flexible wire, Control cable, Enameled wire, PVC insulated power cable, XLPE insulated power cable up to 220kv, Galvanized steel wire, Rubber insulated cable, Mining cable, Fire retardant cable, Flame retardant cable, Connecting wire of electric motor, Underground cable for arming, and Lighting cable.
