0.45MM enameled copper clad aluminum round wire MADE IN CHINA
- 10 Ton / Tons per Month
- QINGDAO TIANJIN SHANGHAI
- T/T
- 60227 IEC 52/53 RVV, 60245 IEC57/54/66 YZ, YZW, YCW Flexible Cord
- SAA H05VV-F, 0.6/1KV Flexible Cord
- H05V2V2-F, H05Z1Z1-F, H05VV-F, H07RN-F, H05RN-F, H05RR-F Power Cord
- EV cable UL/CUL Approved UL62 UL1581 Standard
- SJEOOW SJEOW SJEW SJE SJEO SJEOO 300V TPE Flexible Cord UL62 UL1581 Standard
- SJOOW SJOW SJW SJ SJO SJOO 300V Rubber Flexible Cord UL62 UL1581 Standard
Product Details
Place of Origin: | Henan, China | Brand Name: | amity or oem | Model Number: | uew 180 |
Type: | Insulated | Application: | Other, motors | Conductor Material: | Copper Clad Aluminum |
Conductor Type: | Solid | Insulation Material: | Enameled |
Product Description
ü 0.45MM CCA copper clad aluminum enameled wire
Solderable Polyurethane enameled CCA wire Class 130
Solderable Polyurethane enameled CCA wire Class 155
Solderable Polyurethane enameled CCA wire Class 180
Polyester enameled CCA wire class 130
Midified Polyester enameled CCA wire class 155
Polyester-imide enameled CCA wire class 180
Test Report of copper electric motor winding wire
Name | Copper Enameled Wire | |||
Type | QZY-2/180/1EIW | |||
Diameter | AWG18 | |||
Standard | IEC60317-8-2010 | |||
Date | Nov 20th,2012 | |||
Test Item | Unit | Technical Requirement | Test Result | |
Appearance |
| bright and clean, Uniform color, | Ok | |
| Conductor Diameter | mm | 1.024±0.011 | 1.022 |
Thickness of insulation film | mm | >= 0.065 | 0.085 | |
Overall Diameter | mm | <=1.121 | 1.107 | |
Mechanical properties | Elongation |
| >=30 % | 38% |
spring-back angle |
| <=41 | 39 | |
Flexibility and adhesion | winding test | 1D,no crack | ok | |
Jerk test | No Crack, and No losing adhesion | ok | ||
scratch resisting(Average) | N | 11.6 | 13.88 | |
scratch resisting(Min) | N | 9.80 | 13.67 | |
Thermal propeties | heat shock | N | 200°C,D=3.55mm,crack free | ok |
cut-through resistance | N | 300°C, 2Min no breakdown | ok | |
Chemical resistance | Resistance to solvent | H | 1H | 1H |
Electrical properties | DC resistance at 20°C | Ω/m | 0.02015-0.02139 | 0.02077 |
Breakdown Voltage /room temperature | KV | >=5.0 kV | 8.0,8.0,8.0,8.0,8.0 | |
Enamel Film continuity |
| <=0 /30m | 0 | |
package |
| Meet the export standards | Ok | |
Quality Control Result |
| Ok |
Enamel type
Category | Enamel type | Code | Thermal classification |
single coat | polyurethane | UEW | 130 |
UEWF | 155 | ||
polyester | PEW | 155 | |
polyester-imide | EIW | 180 | |
polyamide-imide | AIW | 220 | |
Dual coat | self-bonding polyurethane | SB UEW | 130 |
self-bonding polyester-imide | SB EIW | 180 | |
polyurethane over coated with polyamide | UEW-NY | 130 | |
UEWF-NY | 155 | ||
polyester over coated with polyamide | PEW-NY | 155 | |
PEWH-NY | 180 | ||
polyester-imide over coated with polyamide-imide | EIW-AL | 200 |

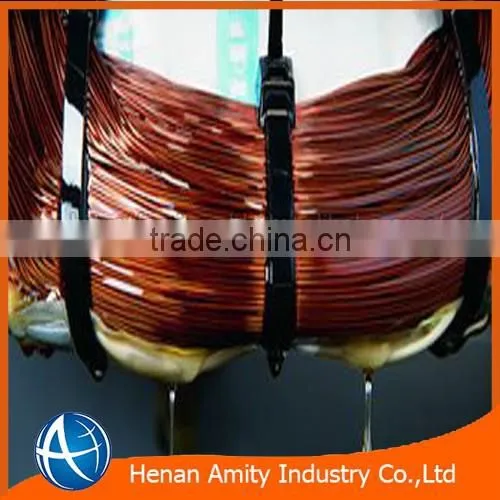

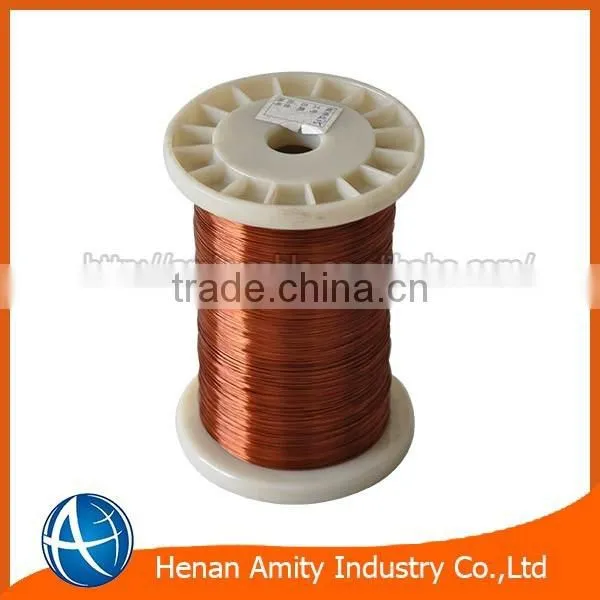

PICTURE SHOW
Learn about us
Henan Amity Industry Co.,Ltd was established in 1996, with an area of 58980 square meters in Zhengzhou city, integrating R&D, production and sales of power cable and wires. We have 600 staff members, including 80 advanced engineers, 98 technicians with different speciality and more than 300 skilled workers. Henan Amity Industry is a specialized enterprise producing all kinds of power cables, wires and cable accessories. Our main products include:AAC, AAAC& ACSR, Aerial bundle cables up to 11kv, PVC insulated wire and flexible wire, Control cable, Enameled wire, PVC insulated power cable, XLPE insulated power cable up to 220kv, Galvanized steel wire, Rubber insulated cable, Mining cable, Fire retardant cable, Flame retardant cable, Connecting wire of electric motor, Underground cable for arming, and Lighting cable.
