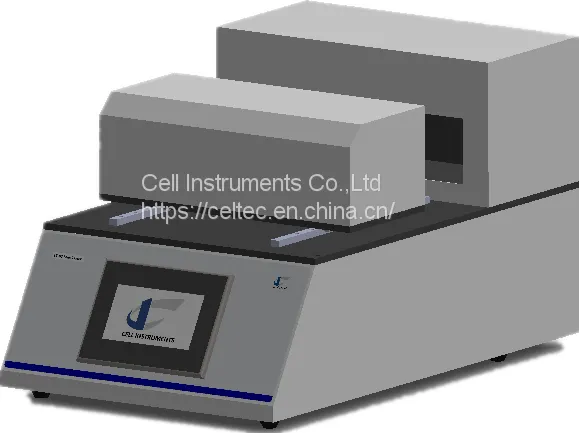

The thermal shrinkage force tester conforms to ASTM D5591 is used for the measurement of the thermal shrinkage force of yarns and cords inair at controlled temperature.
Thermal Shrinkage Force Tester Principle:
Aspecified length of yarn or cord is fixed at a grip and the other end ismounted with a pretension mass, then the mass is removed and the end was connected to a loadcell. After that the yarn or cord is exposed to dry heat at a controlled temperature. The shrinkage force induced in the specimen is readfrom the tester.
Thermal Shrinkage Force Tester Features:
PLC control and touch screen operation
Yarn holder and heat unit separate design, not interfere between yarn sample and heating area before test
PID temperature control
Loadcell range 30N with accuracy of 0.5%F.S. for shrinkage force measurement(standard)
Temperature range: ambient~250°C,accuracy 0.1°C
Time range up to 9999 seconds(oras required)
Professional software is optional
One tension mass is configuredas in ASTM D5591 table 1.
Standard:
ASTM D 5591: Standard Test Method for Thermal Shrinkage Force of Yarn and Cord with a Thermal Shrinkage Force Tester.
