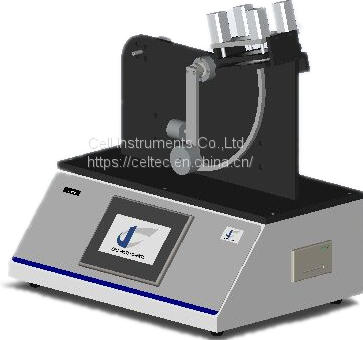

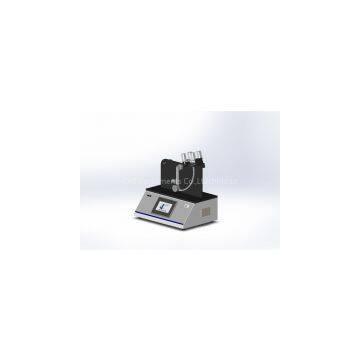

Pendulum impact resistance tester is to measure the energy to burst andpenetrate the center of a specimen, which is determined by loss in mechanicalwork capacity due to the expenditure of kinetic energy by a pendulum. The testgives a quantitative measurement of impact resistance properties of pendulum offilms, sheets, composites, foils, paper and other materials.
Pendulum impact resistance tester standards
This instrument conforms to various national and international standards:
ASTMD3420, NF T54-116, GB 8809
Pendulum impact resistance tester features
PLC control and touch screen operation
Pneumatic specimen clamping and pendulum automatic release
Data auto statistics, storage
Adjustable range and electronic measurement
Microprinter
RS232 port and software (Optional)
TechnicalSpecifications
Impact Energy 1 J, 2 J, 3 J (Standard)
Resolution 0.001 J
Impact Head Size Ф25.4 mm, Ф19 mm, Ф12.7 mm (Customization is available)
Specimen Clamp Diameter Ф89 mm, Ф60 mm
Specimen Size 100 mm x 100 mm or Ф100 mm
Gas Supply Pressure 0.6 MPa
Port Size Ф6 mm
Power Supply AC 220V 50Hz
