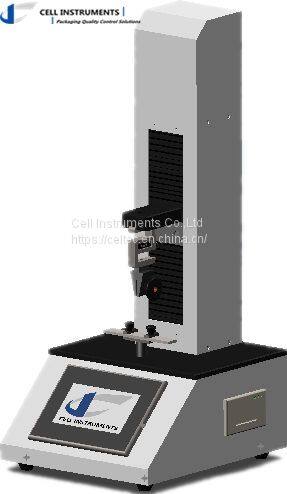

PSTC-16 Loop tack tester is used for adhesive, tapeand label in the measurement of their sticking force, adhesiveness and tack,etc.
It complies with the following testmethods:
FINAT(FINAT Test Method No. 9:Loop tack measurement)
PSTC-16 Loop tack
ASTM D6195 standardtest methods for Loop Tack
PSTC-16 Loop tack tester principle
A strip sample of 25mm wide and 175mm longis formed into a loop and brought into contact with a glass plate at 300mm/min.Immediately after the contact, the loop is withdrawn at 300mm/min and themaximum force to separate the loop from the glass plate is recorded, which isreferred to as loop tack.
PSTC-16 Loop tack tester technical features
7 inch TFT touch screenoperation (human machine interface)
PLC control unit is equippedfor stable performance
Precision ball screw foraccurate speed & displacement.
Test speed is adjustable.
Dual movement
Limiting device and automaticreturning
Microprinter
PSTC-16 Loop tack tester Parameters
Test Range 200N ( or other range)
Speed Range 1-500 mm/m
Stroke 350mm
Dimension (mm) 400(L)×340(W)×800(H)
Sample Size 125mm*25mm
Test Plate Size 150mm*25mm
Power AC 220V 50Hz
