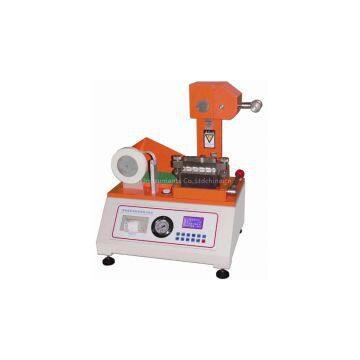

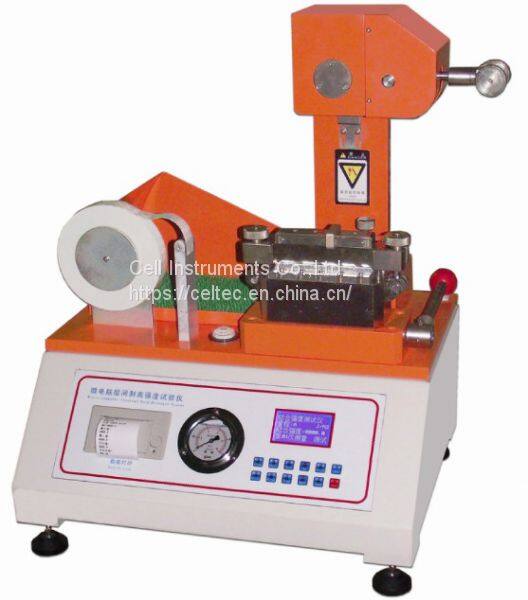

Scott Type Internal Bond Strength Tester Plybond Tester

Scott type internal bond strength is for the internal bond strength of paper and board. It has wide application in single and multi-layer paper and board, including coated paper and those with covered with synthetic polymer, board like case board, white board, grey board, ivory board etc.

Scott type internal bond strength Features

1.LCD display, PVC manual type panel

2.Microcomputer control with automatic measurement and data auto statistics and storage

3.Hydraulic sampling and pressure adjustable

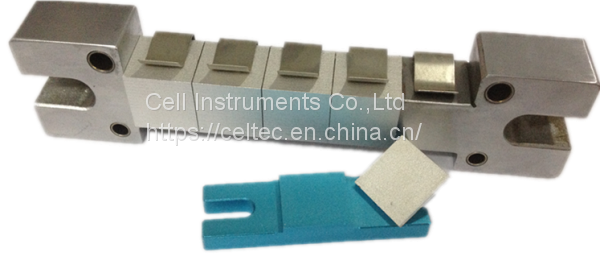

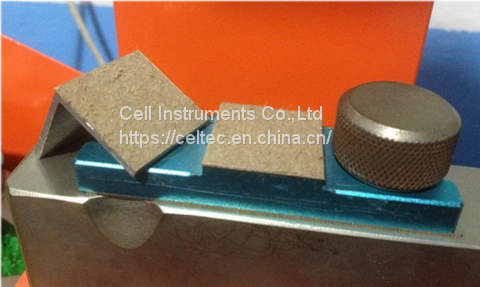

4.Precise sample clamping and orientation

5.Micro printer

Scott type internal bond strength technical data

Sample size: 25.4*25.4mm

Sample clamp force: 0~40kg/cm2 (adjustable)

Impact angle: 90°

Resolution: 0.001lbf/in²

Measuring range: A: 0-500J/M2  B: 500~1000J/M2  C: 1000~1500J/M2

Indication error: A: ±1J/M2     B: ±2J/M2         C: ±5J/M2

Unit: lb-ft/in², J/M2

Dimension: 520mm(L)×420mm(W)×700mm(H)

Weight: 72kg

Standard

TAPPI-UM403, GB/T 26203-2010
