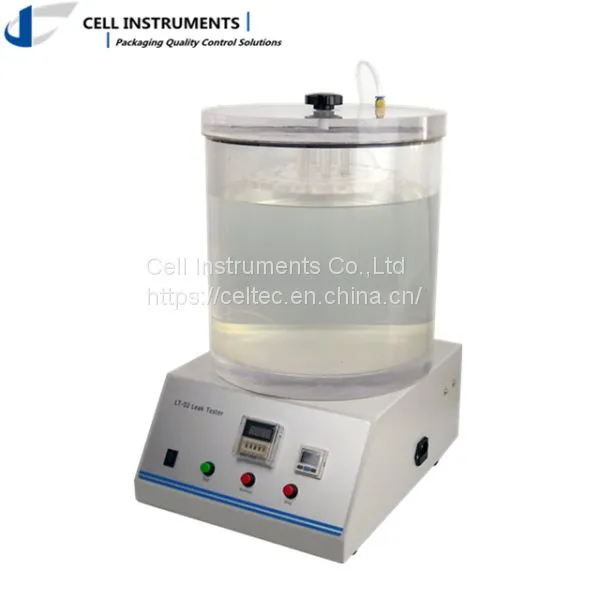

Vacuum leak tester for asceptic bag is designed for the examination of airproof property of packages, containers,bags, pipes. Leak tester is widely used in food, beverage, pharmaceutical,daily chemical, electrical and electronic industries, etc. It follows ASTM D3078.
Vacuum leak tester for asceptic bag uses vacuum ejector to generate stable vacuum environment. The state-of-the-art human-computer interface and PLC control uniton the leak tester make the parameter setting and test operation direct and easy. By saving different groups of parameters, users are free from the troubles of setting parameters each time before use. At the same time, different testing results and totaltest numbers can be saved to avoid any human errors.
1. Leak test process all automatic
2. Touching screen operation
3. Digital vacuum degree and test time input
4. Parameters and test data automatic saving
5. Automatic vacuum maintenance and air back-flushing
6. Extra-thick PMMA
7. Different chamber sizes available
8. No vacuum pump required
9. Easy operation and maintenance
Vacuum Leak Tester for asceptic bag Technical Specification
Vacuum:0~-90KPa/0~-13PSI
Vacuumchamber size: Φ270 mmx 210 mm (H) ( Customization available)
Gassource: Compressed air
GasPressure: 0.7MPa/101.5PSI
Vacuum Leak Tester for asceptic bag standards
ASTMD3078 , GB/T 15171
