Product Details
| Brand Name | DXMC | Place of Origin | China | |
| Model Number | LM-1450A |
Product Description
Certification:CE

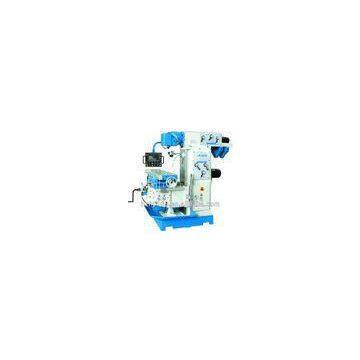

Rotary table 45 degrees Universal milling machine with three axes automatic feeding
LM-1450A Universal milling machine with three axes automatic feeding,large torque and strong power.
LM-1450A Universal milling machine
Features;
1. Rotary table 45 degrees processing of a wide range of three-axis automatic feed
2. Feed motor:1.5kw, fast-moving 2000mm/min.
3. LM-1450A universal swivel head milling machine is based on the LM1450.
4. Spindle taper: ISO50.
Quick details:
1. Brand: DXMC
2. Origin: Shangdong,China
3. Condition: New.
4. Certificate:CE
5. Table size: 1500 x360mm or 1630x360mm
Standard Accessories:
Optional Accessories:
Main parameter:
| Model | LM-1450A |
| Spindle taper | ISO50(H) ISO40(V) |
| Distance from spindle to guideway mm | 505 |
| Horizontal spindle center height ( mm ) | 0-480 |
| Table size (mm) | 1500*360 or 1630*360 ( Optional) |
| Table travel (mm) | 1000*320*420 |
| T-Slot(mm) | 3/18/80 |
| The max.load weight(kg) | 350 |
| Main motor | 4kw(H) 4kw(V) |
| Feed motor | 1.5kw |
| Coolant motor | 60w |
| Feeding speed | 30/55/100/190/350/630/2000 |
| Automatic feed | 30-630 |
| Spindle speed |
60-1800(H) (12 step) 60-1700(V) (12step) |
| Head swivel angle | 360° |
| Pack measure | 2000*2000*2250 |
| N.W/G.W | 3000/3100 kgs |
Advantange:
High strength milling head, big power The internal gear grinding processing Three axis mechanical feeding, high power The rotary table The rectangular guide , hardening treatmentContact Us
