Home > Products > CNC Milling Machines > Low step speed benchtop CNC Milling Machines with 160mm Parallel vise

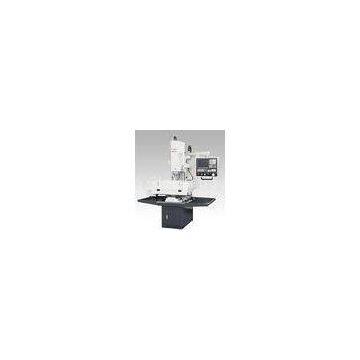

Low step speed benchtop CNC Milling Machines with 160mm Parallel vise
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
4pcs tool stations worktable CNC Milling Machines With GSK controller / Auto lubricating system
-
High Speed 3 axis CNC Milling Machines With 900 x 240mm worktable
-
CNC Vertical Machining Center , cnc 3 axis milling machine are widen rectangle sliding guide rail
-
Automatic FANUC 3 Axis CNC Vertical Machining Center With 3 directions ball screws
-
4 stations GSK CNC Lathe Machine for Internal or external diameter ARC and threading
-
Hydraulic Pneumatic chuck CNC Lathe Machine 900mm Z axis / 100 ~ 2500r / min
Product Details
| Brand Name | Eagle | Place of Origin | China | |
| Model Number | XK7124/XK7124A |
Product Description
Certification:ISO9000
Low step speed benchtop CNC Milling Machines with 160mm Parallel vise
XK7124 CNC milling machine with stronger torque for low step speed,servo motor driven.
CNC milling machine XK7124/xk7124A
Features:
High and low step speeds available and stronger torque for low step speed. 3-axis transmission by precision ball leadscrew,servo motor driven Two style of change available, manually and pneumatically. Various famous CNC controller supplied with for more choice. Machine stand and machine body are designed separately for easy and flexible installment by user. Quick Details| Condition: |
New
|
Place of Origin: |
Anhui China (Mainland)
|
Brand Name:Eagle |
MAINLAND
|
| Model Number: |
XK7124/XK7124A
|
Type: |
Vertical
|
CNC or Not: CNC |
CNC
|
| Voltage: |
220V,380V,415V
|
Power(W): |
1.5kw
|
Dimension(L*W*H): |
2220*1850*2250mm
|
| Weight: |
880kg
|
Certification: |
ISO9001
|
Warranty: one year |
12 Months
|
.
 Main parameter:
| SPECIFICATION | 　 |
| ITEM | XK7124/xk7124A |
| 　 | 　 |
| Size of worktable(L x W)mm |
800×240 900X 240(optional) |
| T slot (width x qty x spaces) | 16mm×3×60mm |
| Max loading weight on worktable | 60Kg |
| X-Axis travel |
430mm 530mm(optional) |
| Y-Axis travel | 280mm |
| Z-Axis travel |
400mm 500mm(optional) |
| Distance between spindle nose and work table | 60-460mm |
| Distance between spindle center and column | 297mm |
| Spindle taper(Tool holder type) | BT30 |
| spindle speed |
Low step 100-900r/min High step 900-2500r/min |
| Spindle motor power | 1.5Kw(Frequency inverter) |
| Feeding Motor power: X/Y/Z | 1Kw/1kw/1kw |
| Rapid feeding speed: X,Y,Z axis | 6mm/min |
| Feeding speed | 0-2000mm/min |
| Positioning accuracy | 0.04mm |
| Repeatability accuracy | 0.02mm |
| Tool clamping method | Manual/ pneumatically |
| N.W (include machine stand) | 880Kg |
| Packing size( L X W X H) | 1600×1250×2300mm |
| Loading amount | 4pcs/20’container |
Standard Accessories:
Coolant system Working lamp Manual lubrication system GSK controller systemOptional Accessories:
Auto lubricating system SIEMENS /FANUC Tool released and clamped pneumatically Heightened column (Z travel:50-550mm) 900x240mm worktable Parallel vise 160mm Tool holder Machine stand made of iron casting.Contact Us
