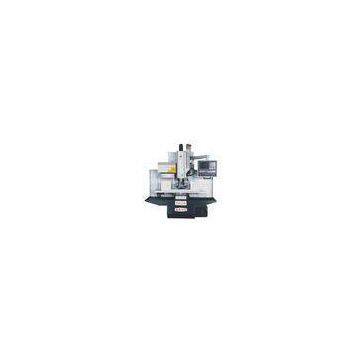

High Speed 3 axis CNC Milling Machines With 900 x 240mm worktable
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
CNC Vertical Machining Center , cnc 3 axis milling machine are widen rectangle sliding guide rail
-
Automatic FANUC 3 Axis CNC Vertical Machining Center With 3 directions ball screws
-
4 stations GSK CNC Lathe Machine for Internal or external diameter ARC and threading
-
Hydraulic Pneumatic chuck CNC Lathe Machine 900mm Z axis / 100 ~ 2500r / min
-
High rigidity Spindle of heavy cutting structure CNC Lathe Hydraulic tailstock
-
High precision CNC Lathe Machine Automatic lubricating with feeding motor and leadscrew
Product Details
| Brand Name | Eagle | Place of Origin | China | |
| Model Number | XK7124L/VMC24L |
Product Description
Certification:ISO9001:2000
High Speed 3 axis CNC Milling Machines With 900 x 240mm worktable
CNC milling machine VMC24L with high speed and high efficiency , 3-axis linear guideway and servo driven
CNC milling machine XK7124L/VMC24L
Features:
Specially design for mini-size parts machining with space occupied small,butvery rigidity and precision making. High-speed and precisely spindle unit with servo motor driven. X/Y/Z linear guideway,servo driven. Supplied with Cloak’ type ATC(10pcs) and concentrated all of functions as vertical machine center,with high-speed and high efficiency. Quick Details| Condition: |
New
|
Place of Origin: |
Anhui China (Mainland)
|
Brand Name:Eagle |
MAINLAND
|
| Model Number: |
XK7124L/VMC24L
|
Type: |
Vertical
|
CNC or Not: CNC |
CNC
|
| Voltage: |
220V,380V,415V
|
Power(W): |
2.2kw
|
Dimension(L*W*H): |
2220*1850*2250mm
|
| Weight: |
12800kg
|
Certification: |
ISO9001:2000
|
Warranty: one year |
12 Months
|
.
 Main parameter:
| SPECIFICATION | 　 |  |
| ITEM | XK7124L | VMC24L |
| 　 | 　 |  |
| Size of worktable(L x W)mm | 810×240 | 810x240 |
| T slot (width x qty x spaces) | 16mm×3×60mm | 16mm×3×60mm |
| Max loading weight on worktable | 100Kg | 100kg |
| X-Axis travel | 380mm | 380mm |
| Y-Axis travel | 240mm | 240mm |
| Z-Axis travel |
370mm 470mm(optional) |
370mm 470mm(optional) |
| Distance between spindle nose and work table | 60-430mm | 60-430mm |
| Distance between spindle center and column | 309mm | 309mm |
| Spindle taper(Tool holder type) | BT30 | BT30 |
| spindle speed | 100-6000r/min | 100-6000r/min |
| Spindle motor power | 2.2Kw/3.7kw(Servo motor) | 2.2Kw/3.7kw(Servo motor) |
| Feeding Motor power: X/Y/Z | 1.5Kw/1.5kw/1.5kw | 1.5Kw/1.5kw/1.5kw |
| Rapid feeding speed: X,Y,Z axis | 15mm/min | 15mm/min |
| Feeding speed | 0-2000mm/min | 0-2000mm/min |
| Positioning accuracy | 0.025mm | 0.025mm |
| Repeatability accuracy | 0.016mm | 0.016mm |
| Tool clamping method | pneumatically | pneumatically |
| ATC capacity(optional) | Â | ATC 10pcs |
| N.W (include machine stand) | 1280Kg | 1280kg |
| Packing size( L X W X H) | 1770×1650×1300mm | 1770×1650×1300mm |
| CNC Controller system |
GSK983M, Optional:SIEMENS808D, Taiwan SYNTEC system |
GSK983M, Optional:SIEMENS808D, Taiwan SYNTEC system |
Standard Accessories:
Coolant system Working lamp Manual lubrication system GSK controller systemOptional Accessories:
Auto lubricating system SIEMENS /FANUC Tool released and clamped pneumatically Heightened column (Z travel:50-550mm) 900x240mm worktable Parallel vise 160mm Tool holder Machine stand made of iron castingContact Us
