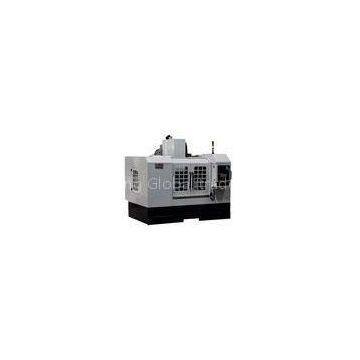

Mobile Hand Wheel FANUC Vertical CNC Machine Center with X / Y / Z axes

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Eagle		Place of Origin	China
Model Number	VMC850/1060/1360

Product Description

Delivery Time:within 35days
Certification:CE

FANUC system 380V CNC Vertical Machining Center High Speed VMC850 With Mobile hand wheel

Mobile Hand Wheel FANUC Vertical CNC Machine Center with X / Y / Z axes

Vertical Maching Center VMC850/VMC1060/VMC1360

Features:

1. Use strong rigid casting steel, X/Y/Z axes are supplied with rectangular guide ways by plastic sticker,medium frequency quenching and precisely scraping.

2. Spindle from Taiwan with high speed and precision..

3. Imported bearing with high .precision.

4. Coolant system equipped with pump of large flow and high lift pump to insure enough under high speed cutting.

Quick Details

Condition:	New	Place of Origin:	Anhui,China (Mainland)	Brand Name:	Eagle
Model Number:	VMC850/1060/1360	Type:	Vertical	CNC or Not:	CNC
Voltage:	380V	Power(KW):	7.5-15KW	Dimension(LWH):
Weight:	5500-8500kgs	Certification:	CE	Warranty:	one year

Main parameter and specifications:

SPECIFICATION
ITEM	VMC850	VMC1060	VMC1360

X-Axis travel	800mm	1000mm	1300mm
Y-Axis travel	500mm	600mm	600mm
Z-Axis travel	500mm	680mm	600mm
Distance from Spindle nose to worktable surface	106-655mm	180-780mm	180-780mm
Distance from spindle centre to surface of column ram	550mm	600mm	650mm
T slot (width x )	18×3 x150	18×3 x120	18×3 x120
Worktable size	500×1050mm	600×1300mm	600×1500mm
Max.loading of worktable	600Kg	800Kg	800Kg
Power of spindle motor	7.5/11KW	7.5/11KW(11/15KW)	11 /15KW
Spindle speed	60-8000rpm	60-8000rmp	60-7000(6000)rpm
Spindle taper	BT40	BT40	BT40(BT50)
Spindle bearing	P4	P4	P4
Rapid traverse speed of 3 axes	X /Y 18m/min	X /Y 18m/min	X /Y 18m/min
Z 15m/min	Z 15m/min	Z 15m/min
Cutting feed rate	1-5000mm/min	1-5000mm/min	1-5000mm/min
X/Y axis ball screw(diameter x space)	40mm x 10mm	40mm x 10mm	40mm x10mm
Z axis ball screw(diameter x space)	40mm x 10mm	40mm x 10mm	40mm x 10mm
Min.set unit & moving unit	0.001mm	0.001mm	0.001mm
ATC type	Spindle floating/Manipulator	Spindle floating/Manipulator	Spindle floating/Manipulator
Time of tools automatic changing(near)	7/3.5s	7/3.5s	7/3.5s
ATC capacity	16/24pcs	20/24pcs	20/24pcs
Max.dia.of tool(near) x weight x length	80mm x7kgs x300mm	80mm x7kgs x300mm	80mm x7kgs x300mm
Positioning accuracy (300mm)	±0.005mm	±0.005	±0.005
Repeatability accuracy (300mm)	±0.003mm	±0.003	±0.003
Machine weight	5500kg	7500kg	8500kg
Air pressure	6kg/cm2	6kg/cm2	6kg.cm2
Power of cooling pump for cutting	370W	370W	370W
Power capacity	15KVA	20KVA
