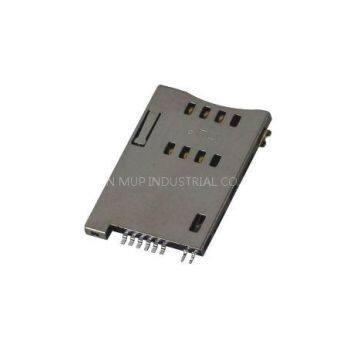

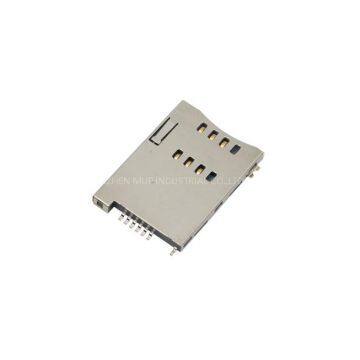

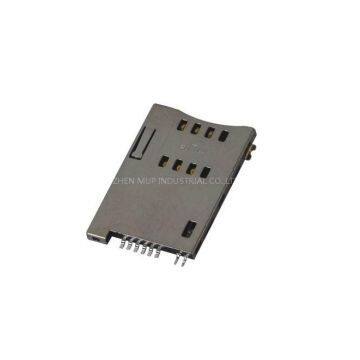

Mobile push push type SIM card connector

1.General characteristics

   Dimensions:27.60L*18.70W*1.80Hmm

   Weight:1.2g

   Contact principle:Friction technology

   Operating position:shaft up/down/horizontal

   Mounting system:SMT(post  optional)

   Durability:5000 cycles min

2.Mechanical characteristics

   Insulation material:Thermoplastic,UL 94V-0

3.Electrical characteristics

   Number of contacts:6pins

   Contact resistance:50MΩ typical,1000 MΩ max

   Insulation resistance:>1000 MΩ/500V DC

   Switch type:Blade

   Operation:Normally open

4.Solderability

   Wave:not applicable

   Vaporphase:215oC30sec Max

   IR reflow:230oC,15sec Max

   Manual soldering:360oC,3sec.Max

5.Environmental characteristics

  Operating temperature-40oC +85oC

  Operating humidity:10%≈+95%RH

  Storage temperature:-40oC +85oC

  Storage humidity:10%≈95%RH

  Thermal shock: -40oC≈+85oC,5cycles

  Damp Heat:40oC,90%RH,10days

  Salt-mist:35oC,5%Nacl,24H
