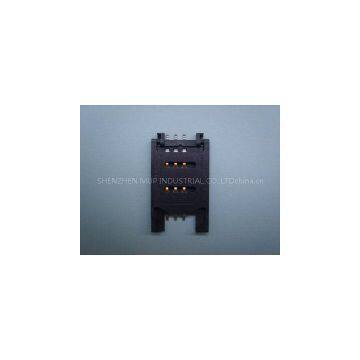

1.SIM card reader
2.ISO ROHS approved
3.used in:card reader
4.Long life:5000 cycles min
5.General characteristics
Dimensions:15.85L*16.50W*3.00Hmm
Weight:1.0±0.2g
Contact principle:Friction technology
Operating position:shaft up/down/horizontal
Mounting system:SMT(without post)
Durability:5000 cycles min
6.Mechanical characteristics
Insulation material:Thermoplastic,UL 94V-0
7.Electrical characteristics
Number of contacts:6pins
Contact resistance:50MΩ typical,1000 MΩ max
Insulation resistance:>1000 MΩ/500V DC
8.Solderability
Wave:not applicable
Vaporphase:215oC30sec Max
IR reflow:230oC,15sec Max
Manual soldering:360oC,3sec.Max
9.Environmental characteristics
Operating temperature-40oC +85oC
Operating humidity:10%≈+95%RH
Storage temperature:-40oC≈+85oC
Storage humidity:10%≈95%RH
Thermal shock: -40oC≈+85oC,5cycles
Damp Heat:40oC,90%RH,10days
Salt-mist:35oC,5%Nacl,24H
