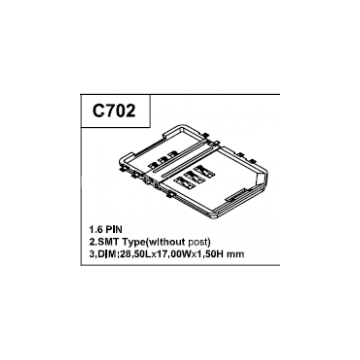

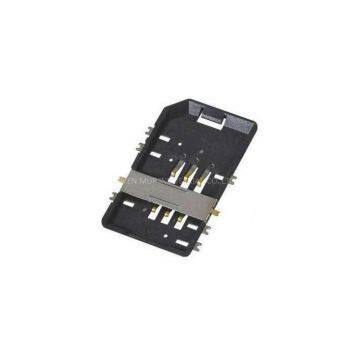

Mobilephone card connector
- 20000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | MUP | Place of Origin | China | |
| Model Number | MUP-C702 |
Product Description
1.Mobilephone card adapter
2.ROHS compliant
3.used:Mobile phone
4.Long life:5000 cycles min
5.good contact performance
Mobilephone card adapter
Technical characteristics
1.General characteristics
Dimensions:25.20L*16.00W*1.50H mm
Weight:0.45g
Contact principle:Friction technology
Operating position:shaft up/down/horizontal
Mounting system:SMT(post optional)
Durability:5000 cycles min
2.Mechanical characteristics
Insulation material:Thermoplastic,UL 94V-0
3.Electrical characteristics
Number of contacts(optional):6pins
Contact resistance:50MΩ typical,1000 MΩ max
Insulation resistance:>1000 MΩ/500V DC
4.Solderability
Wave:not applicable
Vaporphase:215oC,30sec Max
IR reflow:230oC,15sec Max
Manual soldering:360oC,3sec Max
5.Environmental characteristics
Operating temperature:-25oC≈ +70oC
Operating humidity:10%≈+95%RH
temperature:-40oC≈+85oC
Storage humidity:10%≈+95%RH
Thermal shock: -40oC+85oC,5cycles
Damp Heat:40oC,90%RH,10days
Salt-mist:35oC,5%Nacl,24H
