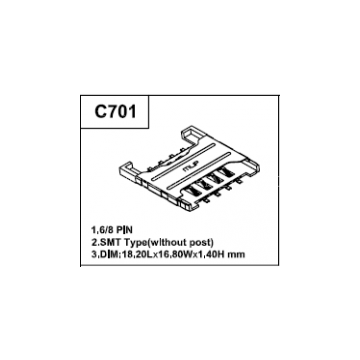

SIM Card Connector for Phone

1.Mobile card holder
2.ROHS Compliant
3.used:Mobilephone,card reader
4.life:5000 cycles min
5.good contact performance

Mobile  card holder

Technical characteristics

1.General characteristics

   Dimensions:18.20L*16.80W*1.40H mm

   Weight:Approx0.40g

   Contact principle:Friction technology

   Operating position:shaft up/down/horizontal

   Mounting system:SMT(post optional)

   Durability:5000 cycles min

2.Mechanical characteristics

   Insulation material:Thermoplastic,UL 94V-0

3.Electrical characteristics

   Number of contacts(optional):8pins

   Contact resistance:50MΩ typical,100MΩ max

   Insulation resistance:>1000 MΩ/500V DC

4.Solderability

   Wave:not applicable

   Vaporphase:215oC,30sec Max

   IR reflow:260oC,10sec Max

   Manual soldering: 360oC,3sec Max

5.Environmental characteristics

  Operating temperature:-25oC≈ +70oC

  Operating humidity:10%≈+95%RH

  temperature:-40oC≈+85oC

  Storage humidity:10%≈+95%RH

  Thermal shock: -40oC+85oC,5cycles

  Damp Heat:40oC,90%RH,10days

  Salt-mist:35oC,5%Nacl,24H
