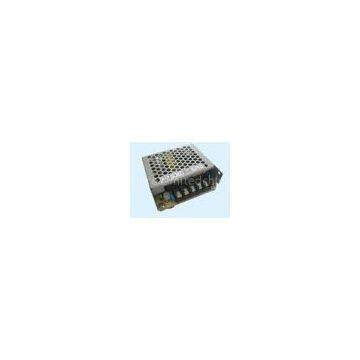

5vdc Industrial Power Supply 25w For IT Digital Products , Constant Current

5vdc Industrial Power Supply 25w For IT Digital Products , Constant Current thumbnail-1
5vdc Industrial Power Supply 25w For IT Digital Products , Constant Current photo-1
Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Panfore
Place of Origin:
China
Model Number:
PS25-5
Contact Supplier Request Quote Chat Now
Panfore Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Panfore
Place of Origin China
Model Number PS25-5
Delivery Time:15 days
Certification:CE,ROHS, FCC,CB,UL,C-TICK

5vdc Industrial Power Supply 25w For IT Digital Products , Constant Current

Feature:

. Input Voltage Range : 90 ~ 264 Vac

. Small Size

. No load consumption < 0.3W

. Protections: Overload, Short Circuit

. Widely Used On LED Light IT Products

. Warranty : 2 Years

Description:

5V 25W Industrial Power Supply For LED Light IT Products

Electronics Specification:

Input Voltage Range:

90~264Vac

AC current:

0.3A

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current:

<0.3Ma/240Vac

Output Voltage:

5.0Vdc

Output Voltage Range:

4.50Vdc to 5.50Vdc

Output Current:

4.5A

Output power:

22.5W (Max)

Voltage tolerance:

±5%

Line regulation:

±1%

Load regulation:

±5%

Set up time, Rise time, Hold-up time:

50ms,50ms,20ms

Ripple and Noise Test Condition :

<50 mVp-p

Efficiency:

＞75%

Over current protection:

Over Current limit ≤2.0A (Max) in CC Mode

Output Short Circuit Protection:

Can be Shorted without damage and auto recovery

Environment

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability

Hi-Pot Testing Voltage :

I/P-O/P: 3KVAC, I/P-FG:1.5KVAC；O/P-FG:0.5KVAC 1min

Isolation resistance:

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval:

Certificate

CE

Mechanical Characteristics

Size:

(L)74*(W)68*(H)27mm

Terminal Pin assignment:

Pin 1:  ACL

Pin 2:  ACN

Pin 3:  GND

Pin 4:  Output －V

Pin 5:  Output +V

Remark:

. All parameters are specified at 220Vac input, rated load,25℃ 70% RH ambient;

. Tolerance: includes set up tolerance, line regulation, load regulation,

. Ripple & Noise are measured at 20MHz of bandwidth by using a 30cm twisted-pair wire terminated with a 0.1uf & 47uf parallel capacitor;

. Line regulation is measured from low line to high line at rated load;

. Load regulation is measured from 20%~100% at rated load.

Applications:

widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light fi
