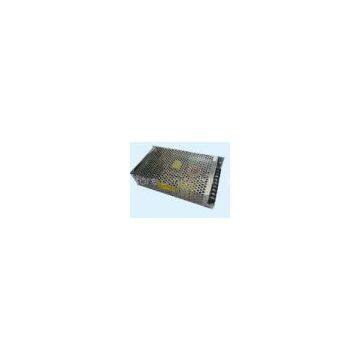

Single Output Industrial Power Supply 12V 12.5A For Led Driving , High Power 150W

Electronics Specification :

Input Voltage Range:

90~132VAC;180~264VAC

AC current:

3.0A At 115Vac ; 1.5A At 230Vac

Frequency:

50 / 60Hz

Inrush Current:

40A / 230Vac

Leakage Current:

<0.5 mA / 240Vac

Output Voltage:

12.0Vdc

Output Voltage Range:

10.80Vdc to 13.20Vdc

Output Current:

12.5A

Output power:

150.0W (Max)

Line regulation:

±1%

Load regulation:

±5%

Set up time, Rise time, Hold-up time:

50ms,50ms,20ms

Ripple and Noise Test Condition :

<100 mVp-p

Efficiency:

＞84%

Over current protection:

Over Current limit ≤2.0A (Max) in CC Mode

Output Short Circuit Protection:

Can be Shorted without damage and auto recovery

Environment

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability

Hi-Pot Testing Voltage :

I/P-O/P: 3KVAC, I/P-FG:1.5KVAC；O/P-FG:0.5KVAC 1min

Isolation resistance:

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval:

Certificate

CE

Mechanical Characteristics

Size:

(L)199 * (W)98 * (H)38mm
